External Heating System [EHS]

The EHS is used to work at high temperature. A ring around the MDAC heat all

the parts to apply an homogeneous temperature at the sample.

The EHS allow to control and measure the temperature with two sensors

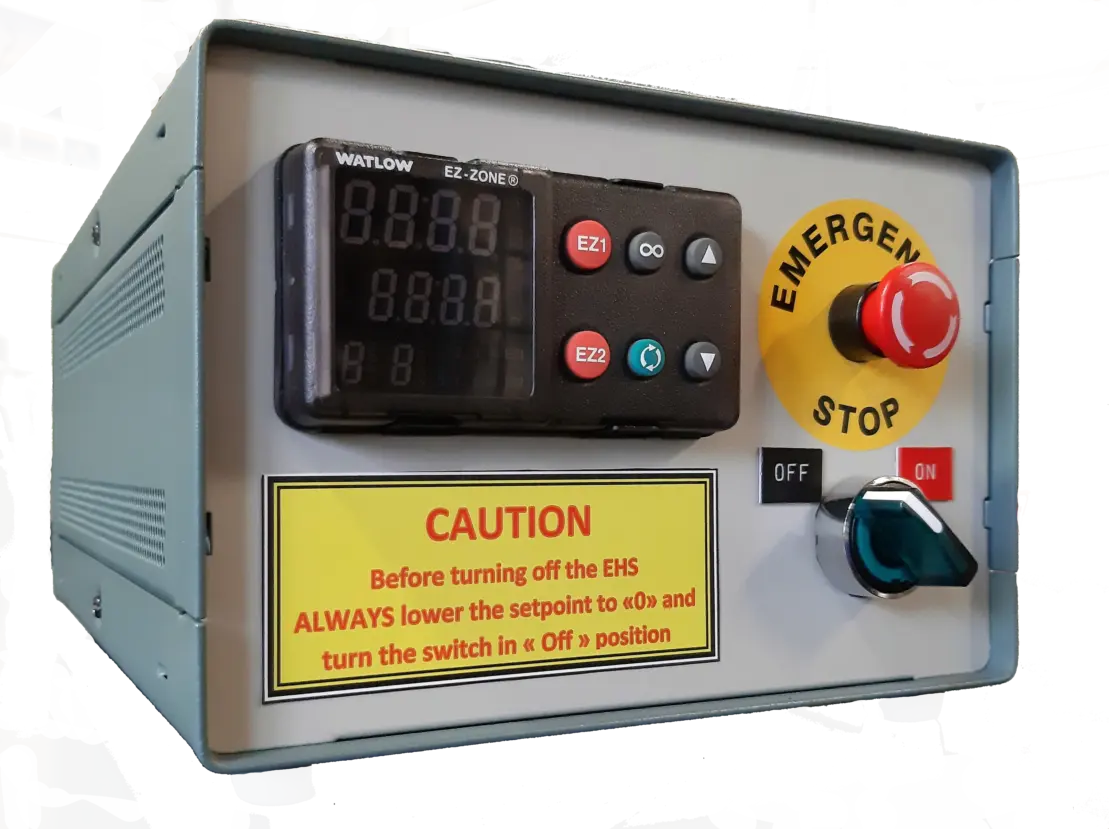

Case features :

• Power: 2300 W

• Voltage: 110-230 Vac 50 Hz

• Maximum temperature: 650-700 °C

• Connections: 2 thermocouple inputs type K

1 output charge

• Regulation precision: ± 1 ° C

• Comes with: 2 thermocouple sondes with connectors

1 heating ring with connectors
1 alimentation

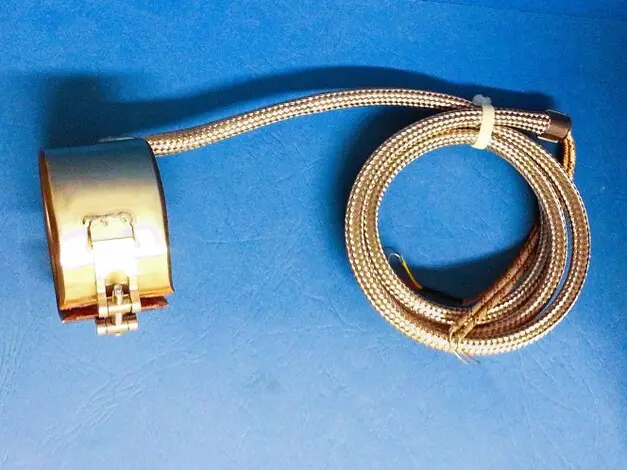

Ring features:

• Power: 600 W
• Inside diameter: 2” (50,8 mm) or 2-1/8” (54 mm)
• Heater width: 1” (25,4 mm) or 1-3/8” (35 mm)

BETSA® can develop and study special sizes
according to your needs, on request

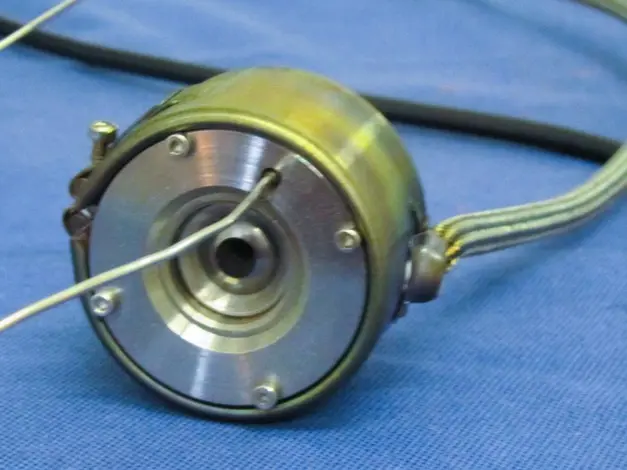

Adjusable Ring [ARR --]

Depending on the size of the MDAC the adjustable ring can have powers between 400 and 700 watts with diameters can go from 48 mm to 54 mm on heights from 25 to 38 mm

Adjusable Ring [ARR --]

Depending on the size of the MDAC the adjustable ring can have powers between 400 and 700 watts with diameters can go from 48 mm to 54 mm on heights from 25 to 38 mm

Adjusable Ring [ARR --]

Depending on the size of the MDAC the adjustable ring can have powers between 400 and 700 watts with diameters can go from 48 mm to 54 mm on heights from 25 to 38 mm

Themocouple [TTK0005]

BETSA® offers 0.127µm thermocouple (type K) probes to recover the value of the temperature almost in situ in contact with the diamond
They are sold assembled and in spare parts in sets of 5
