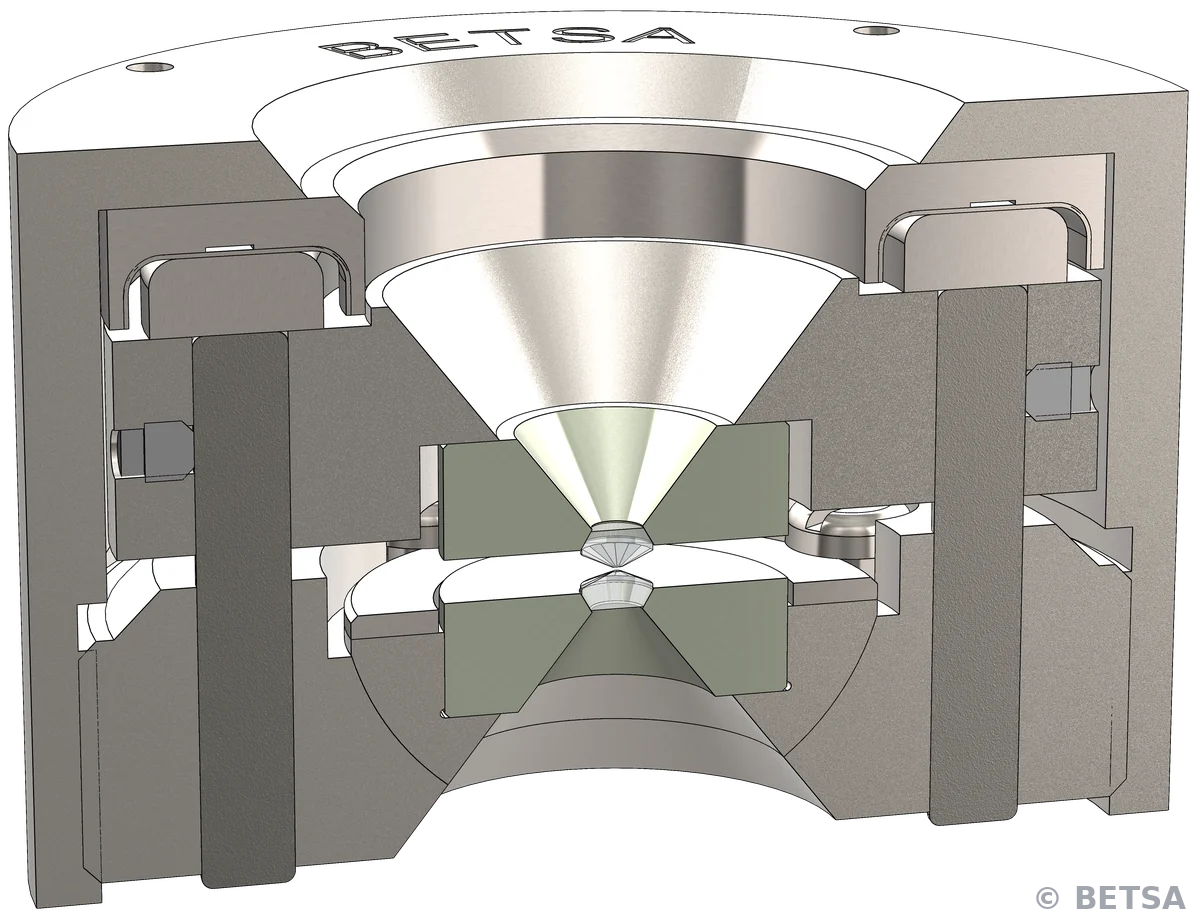

M-DAC-XCV-THT
Membrane - Diamond Anvil Cell
Large range temperature.
Spectroscopy at
High pressure
Visible - Single crystal - Powder X-ray diffraction - Raman-Infrared - Laser heating
Pressure range*:
- 100 GPa
Temperature range :
- 4K to 1000K
Optical access to sample :
- Full angle apertures 76°/76°
- Working distance ≥ 13 mm
Sizes :
- Heigh : 32 mm (1.26")
- Diameter : Ø 50 mm (1.97")
*(depending on the culet size of the diamonds)

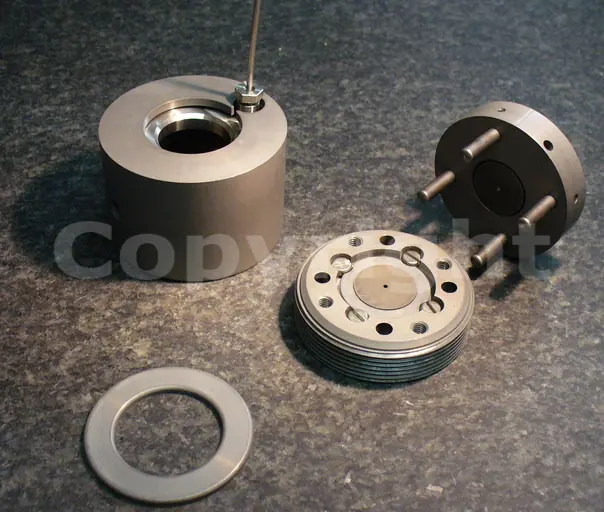

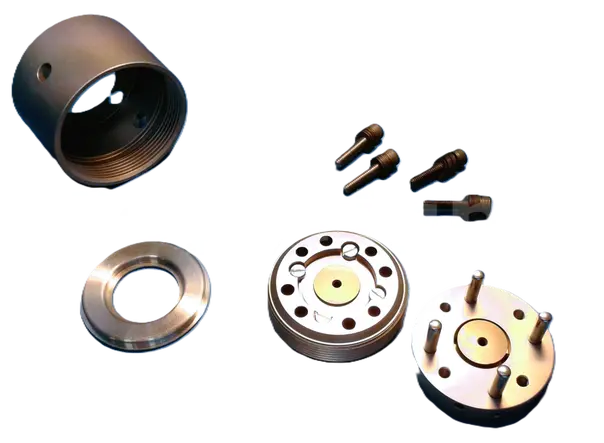

Composed of :
- 2x Conical anvils
- 1x Cover
- 1x Piston
- 1x Cylinder
- 4x Dowels
- 1x Rockers
- 2x Seats
- 4x Internal adjustment - adjustment screws
DAC body material :
- Inconel High temperature
Material of screws and other parts:
- hardened steel
- steel
- Inconel High temperature
- stainless steel

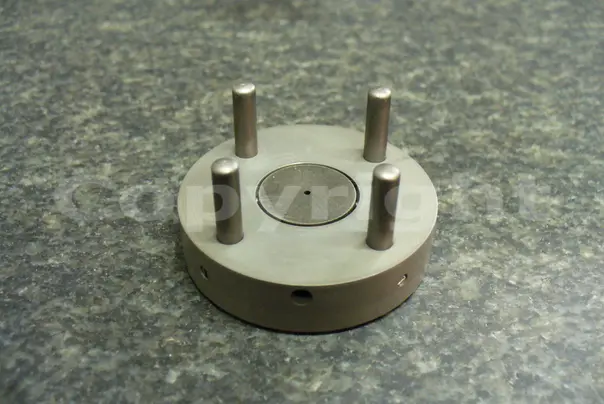

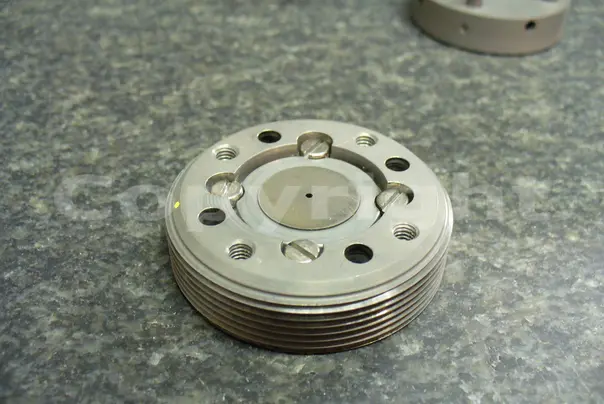

Material seats and rocker:
- Inconel High temperature
- tungsten carbide - WC
- TiBe2 (1200°C continuous)
- Zirconium ZrO2
Designed to receive BETSA® Membranes :
- Membrane soldered HT
- Membrane with screW
Clamp screw OPTIONAL :
- Membrane and/or combined with screw
- Clamping by manual screw (2 left/2 right)
- Manual screw (4 right and/or gearbox screw
Other features: Holes can drilled for access next to the sample to :
-setup Thermocouples
-setup Electrical connectors (electrical measurements)
