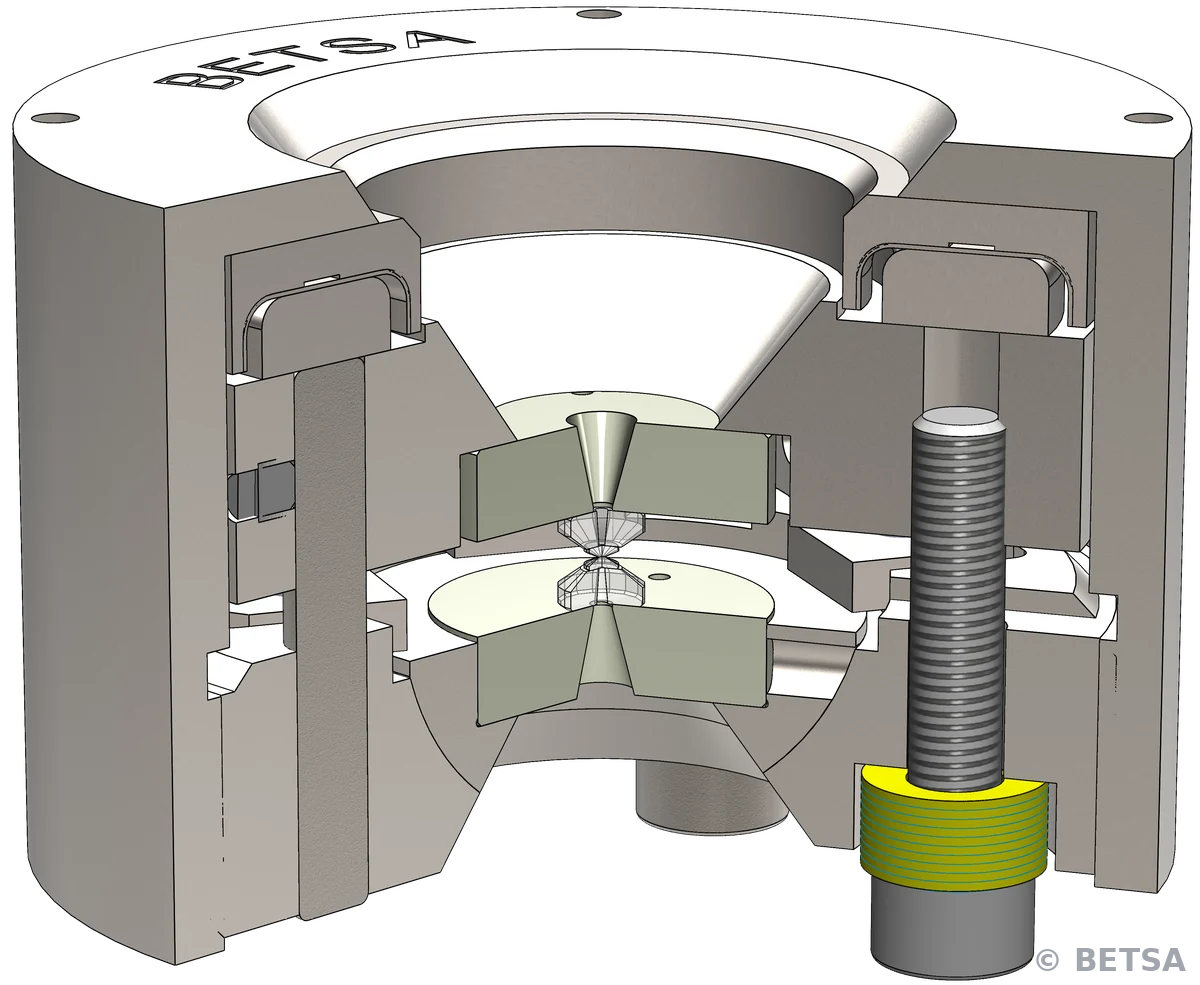

M-DAC-XDR-CS-PA
Membrane - Diamond Anvil Cell
large range temperature.
Spectroscopy at
Medium pressure
Visible - Single crystal - Powder X-ray diffraction - Raman-Infrared - Laser heating

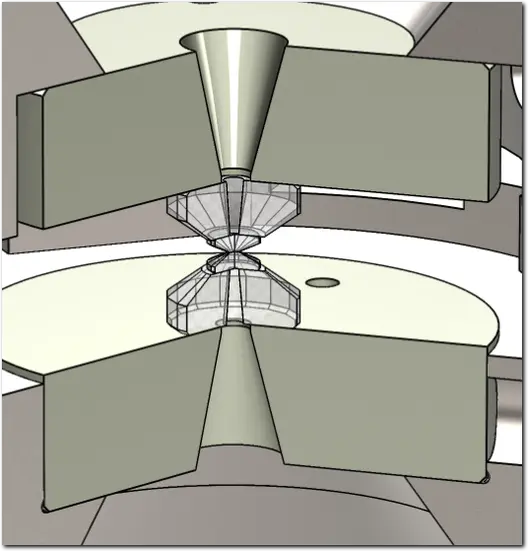

Perfored Anvil
Pressure range*:
- 50 GPa
Temperature range :
- 4K to 1000K

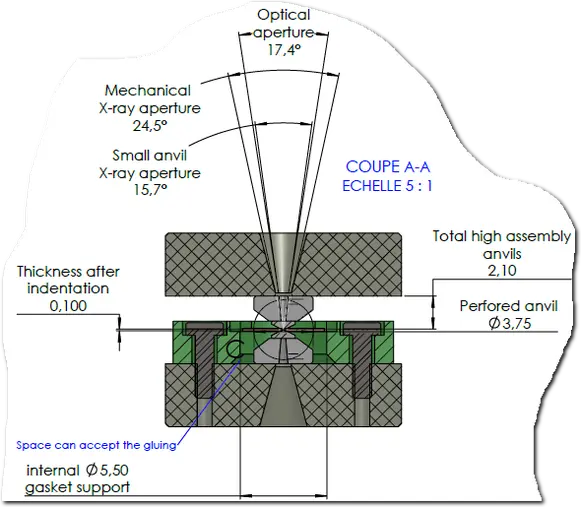

Optical access to sample :
- Full angle apertures 15°/15°
- Working distance ≥ 13 mm
Sizes :
- Heigh : 24.5 mm (0.96")
- Diameter : Ø 50 mm (1.97")
*(depending on the culet size of the diamonds)
Composed of :
- 2x Standard perfored anvils
- 2x Standard anvils
- 1x Cover
- 1x Piston
- 1x Cylinder
- 4x Dowels
- 1x Rockers
- 2x Seats
- 4x Internal adjustment screws
DAC body material :
- Inconel High temperature
Material of screws and other parts :
- hardened steel
- steel
- Inconel High temperature
- stainless steel
Material seats and rocker :
- Inconel High temperature
- tungsten carbide - WC
Designed to receive BETSA® Membranes :
- Membrane soldered
- Membrane soldered HT
- Membrane with screw
- Membrane lateral soldered
Clamp screw OPTIONAL :
- Membrane and/or combined with screw
- Clamping by manual screw (2 left/2 right)
- Manual screw (4 right and/or gearbox screw
Other features: Holes can drilled for access next to the sample to :
-setup Thermocouples
-setup Electrical connectors (electrical measurements)
