Membrane Diamond Anvil Cell
These Membrane Diamond Anvil Cell are aimed
at performing high pressure experiments at a large range of temperatures.
All these Membrane Diamond Anvil Cells
Designed, Manufactured and Produced by BETSA® Company

ONE EXPERIMENT, ONE CELL

Here is the BETSA® cells family. It may be possible to adapt any of these for your specific needs.

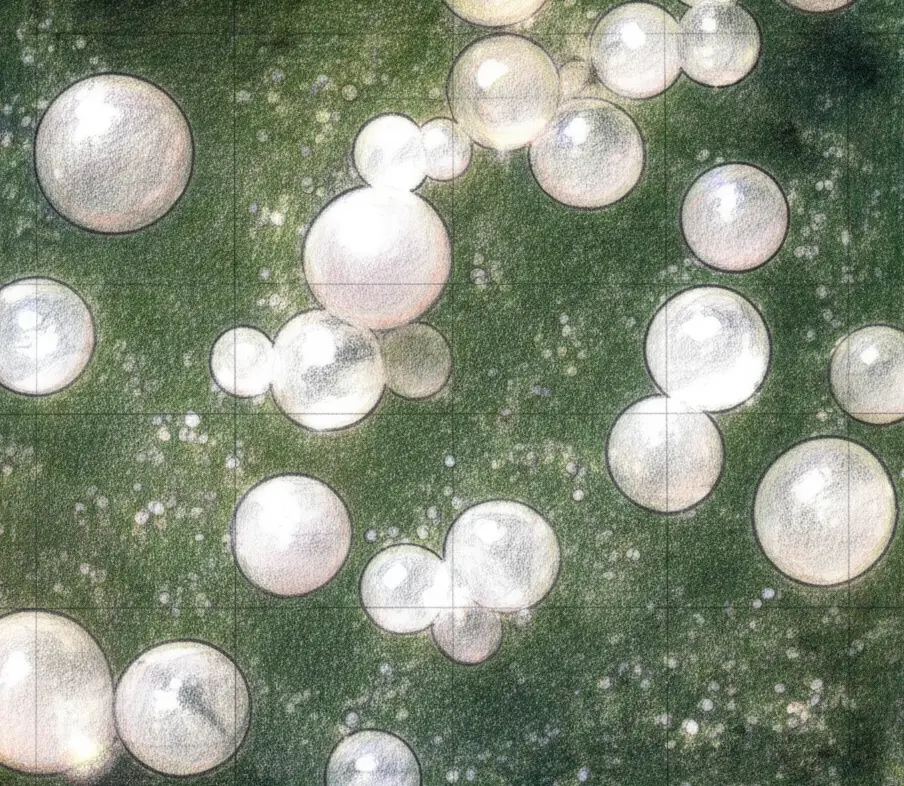

Ruby Balls
BETSA® has provided the High pressure community
with ruby balls for in situ pressure measurement


Electric Discharge Machine [EDM]
Fast drilling, high hole shape quality, high accuracy in centering and very easy operation make the [MH20M] the best tool to prepare the gaskets used in high pressure physics.


Pressure Ruby Luminescence [PRL]
The [PRL] spectrometer (Pressure by Ruby Luminescence) has been designed for measuring pressures using the luminescence of a reference material (Ruby or SrB407 : Sm 2+).


Pneumatic Drive System [PDS]
The Pneumatic Drive System [PDS] is used to control the force applied to the MDAC anvil by varying the pressure in its membrane. The small size, weight, and portability of the [PDS] allow its use in a variety of environments.


Quality and authenticity for Science and creativity

BETSA® specializes in providing an extensive array of products and technologies for conducting experiments under extremely high pressures. Our product range is designed to meet the rigorous demands of high-pressure applications, prioritizing safety and reliability. While we offer a wide selection of standard off-the-shelf models through our catalog site, we recognize that each experiment is unique and may necessitate a customized solution. To address this, we also provide tailored products and services to meet your specific requirements. With BETSA®, you can count on top-notch products and personalized support, enabling you to successfully accomplish your research objectives.
BETSA® offers an unparalleled range of
products and technologies
for the very high-pressure experiments.

While many of our products are available as standard off-the-shelf models from our catalog site,
you may need a specialized solution.


Our engineers and applications specialists will work with you to collaboratively design the apparatus in high-pressure experiments optical component and assembly you require.

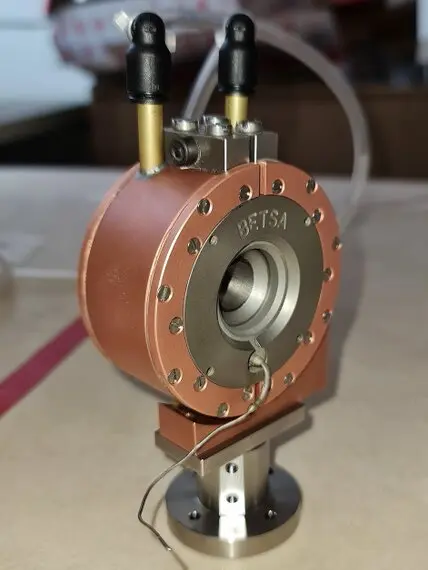

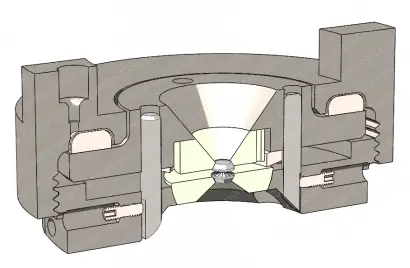

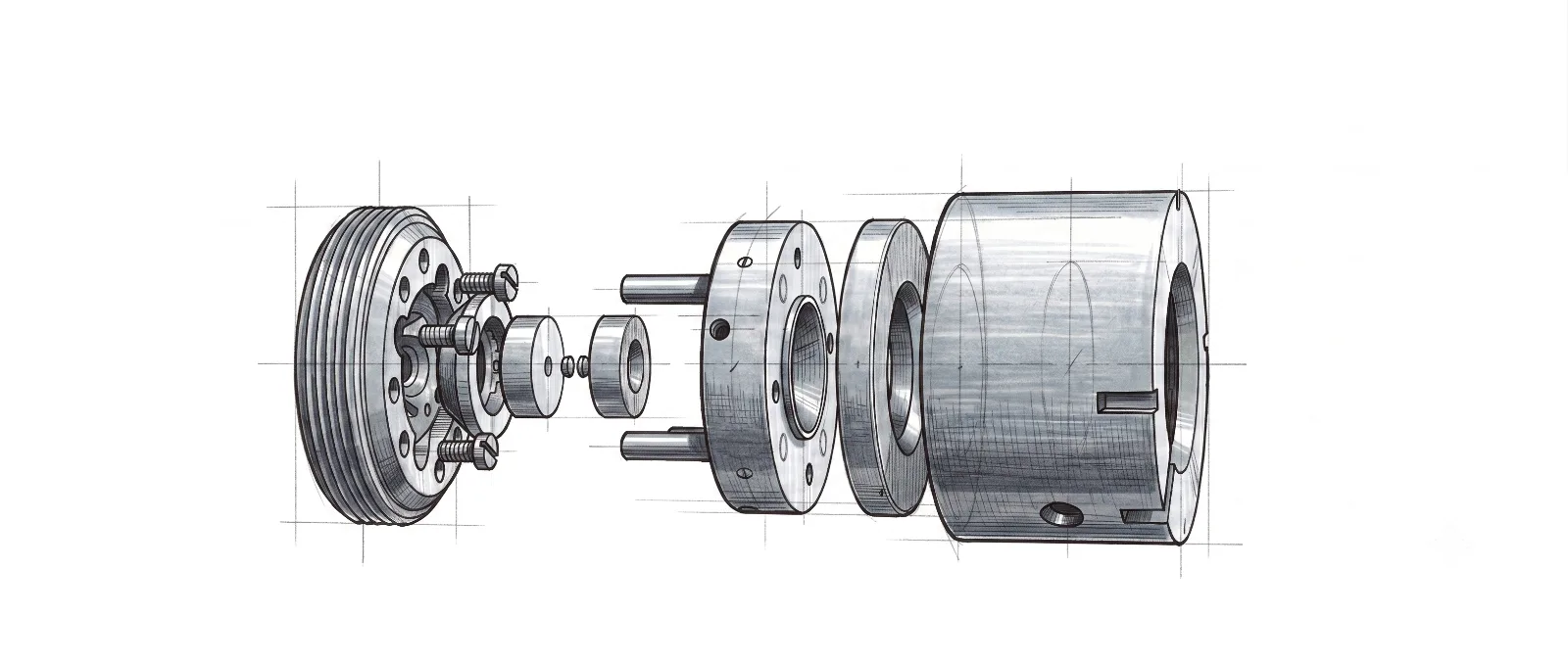

Membrane Diamond
Anvil Cell
These Membrane Diamond Anvil Cell are aimed at performing high pressure experiments at a large range of temperatures.
Pressure range :
0 to 4 Mbar
(depending on the culet size of the diamonds)
Temperature range :
- 10 K to 450 K. Standard version
- 10 K to 1000 K. High temperature version
...
A micro-valve attached to the membrane allows to disconnect the cell from its pressure controller while maintaining the pressure in the membrane

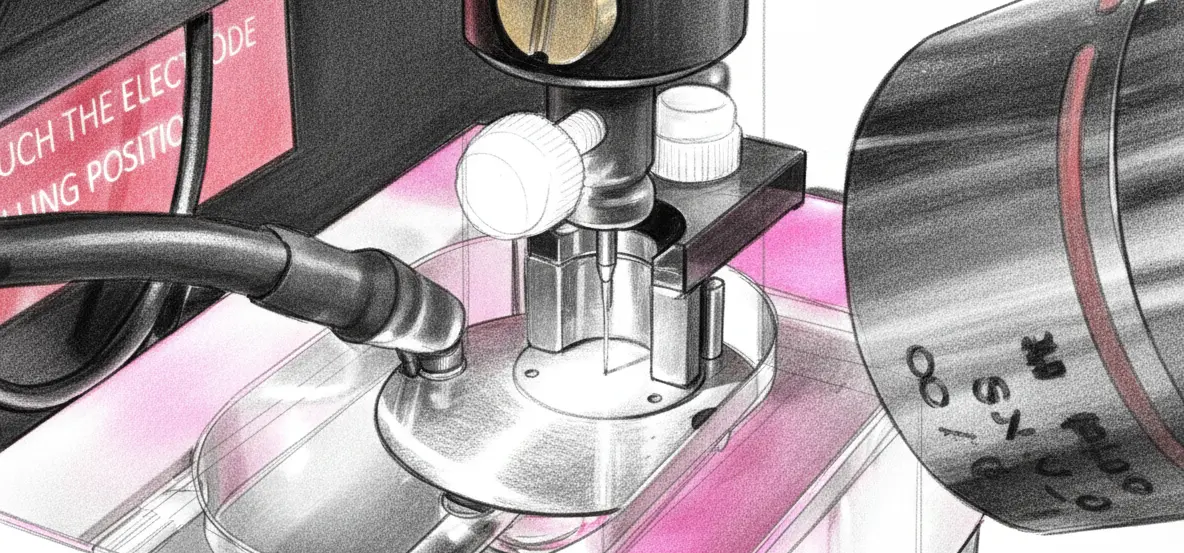

Electric Discharge Machine
Fast drilling, high hole shape quality,
High accuracy in centering and very easy operation make the [MH20M]
the best tool to prepare the gaskets used in high pressure physics.

BESTA® EDM [MH20M]

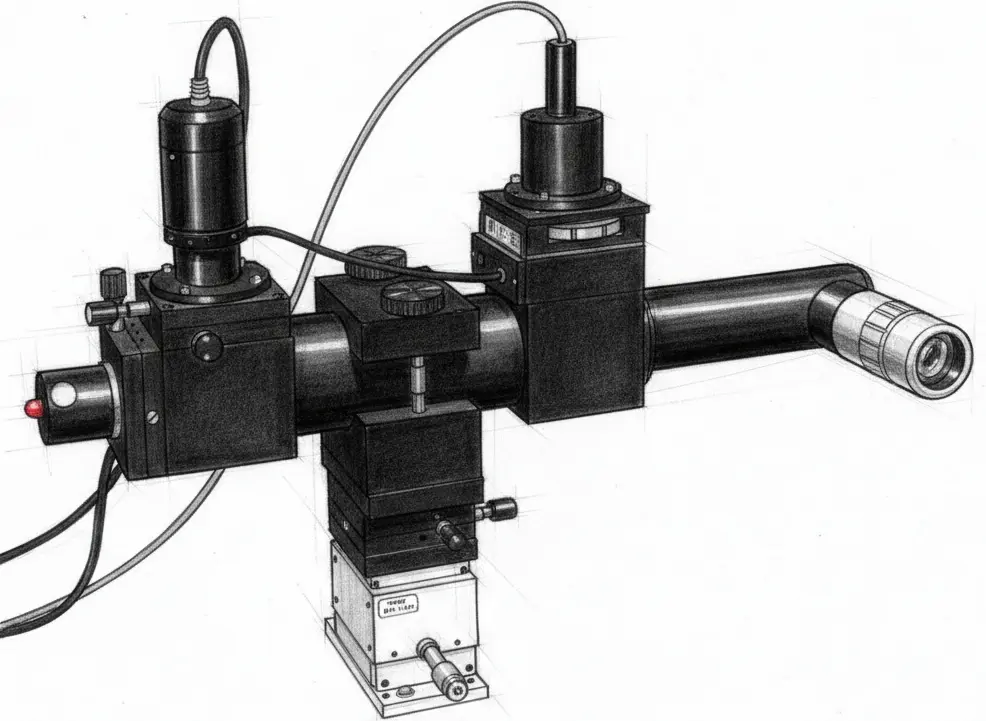

Pressure Ruby Luminescence - Optical Transfer
The [PRL] spectrometer (Pressure by Ruby Luminescence) has been designed for measuring pressures using the luminescence of a reference material (Ruby or SrB407 : Sm 2+).
Its small size and weight make "on site" measurements possible. When equipped with an internal mini laser it functions as a "stand alone" instrument.

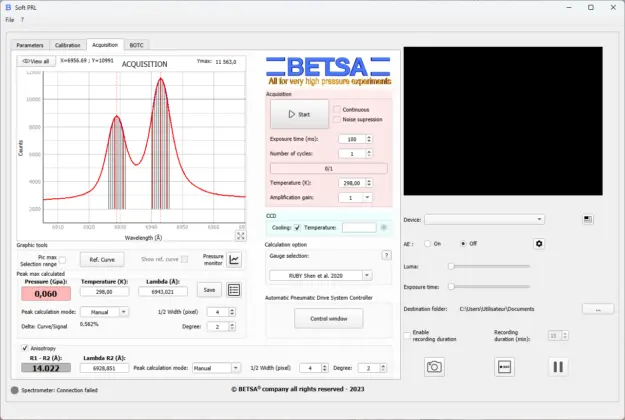

Measurements are very easy and fast with custom high pressure calculation software.
Its small size and weight make "on site" measurements possible.



A collaboration between
BETSA® and the UCBL

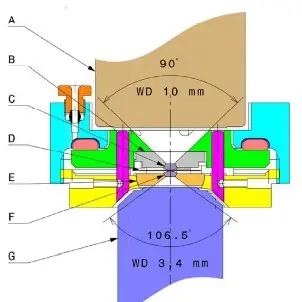

A NEW "NANO"
Membrane Diamond Anvil Cell is available,
to achieve a new objective, a minimal working distance, a lightness and a maximized angular opening.
This NANO MDAC has been developed by the UCBL and now available in partnership sign with BETSA® Company.
MDAC-PROXIMA-1
MDAC-PROXIMA
Custom-made manufacture
BETSA® is specialized
in the design, development, manufacturing and distribution
of very high-pressure experiments.

BETSA® provides specific studies
covering prototype creations.

BETSA® masters numerous technologies
and performs all steps of the development process.

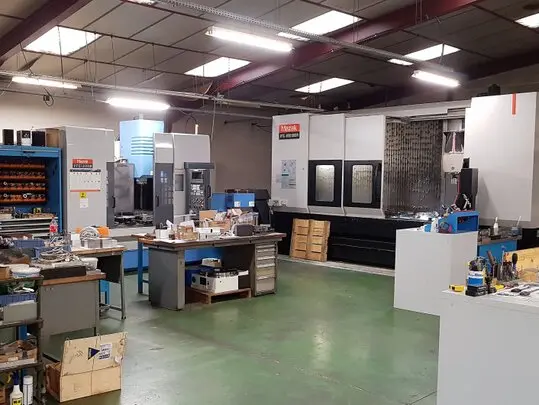

Equipements

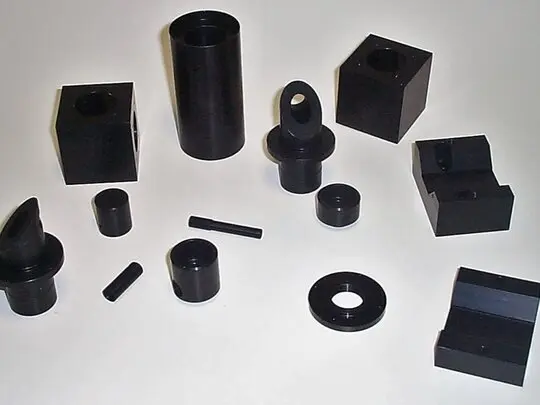

BETSA® studies, manufactures and assembles all parts of these products. BETSA® has machine tool for the manufacture, furnace for stabilization in temperaure of these cells. A team of specialized mechanics is present on site and high-performance tool machines
Mechanics
Each experience being unique, BETSA studies and designs according to your needs the adapted solutions as in the following examples.

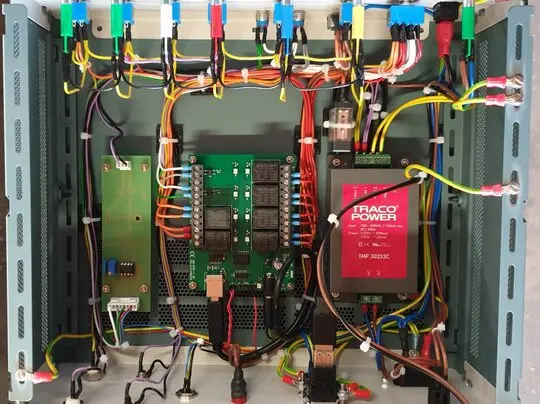

Electro-technologies
Thus, BETSA® is able to design and to manufacture all subassemblies (optical, mechanical, electronic, software) in-house.

Besides the creation of new products, the company distributes existing products all around the world.

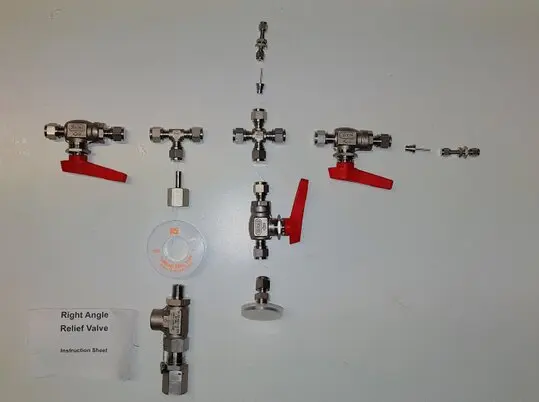

Pneumatic
Thanks to its global approach combined with the complete apprehension of products development, the company guarantees its customers that their requests will met, according to a high-quality process
