BETSA® offers an unparalleled range of products and technologies
for the very high-pressure experiments.
While many of our products are available as standard off-the-shelf models from our catalog site,
you may need a specialized solution.
Our engineers and applications specialists will work with you
to collaboratively design the apparatus in high-pressure experiments,
optical component and
assembly you require.
to collaboratively design the apparatus in high-pressure experiments,
optical component and
assembly you require.
Our engineers and applications specialists will work with you
to collaboratively design the apparatus in high-pressure experiments,
optical component and
assembly you require.

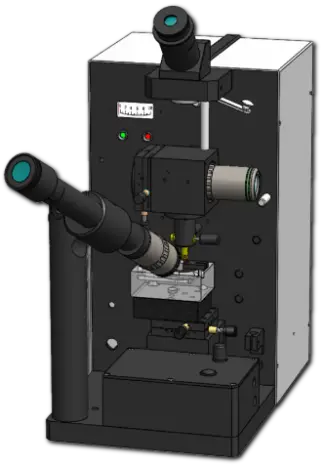

Electric Discharge Machine
Fast drilling, high hole shape quality, high accuracy in centering and very easy operation make the [MH20M]
the best tool to prepare the gaskets used
in high pressure physics.
Fast drilling, high hole shape quality, high accuracy in centering and very easy operation make the [MH20M]
the best tool to prepare the gaskets used in high pressure physics.

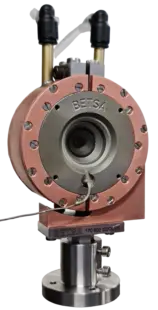

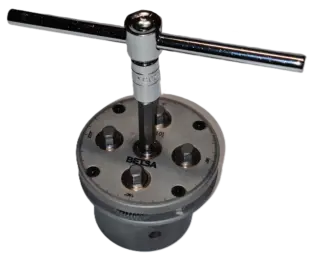

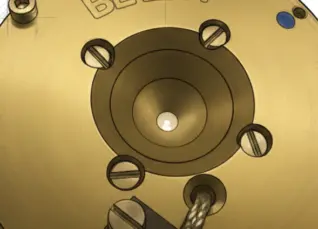

Membrane Diamond
Anvil Cell
Our engineers and applications specialists will work with you
to collaboratively design the apparatus in high-pressure experiments,
optical component and
assembly you require.

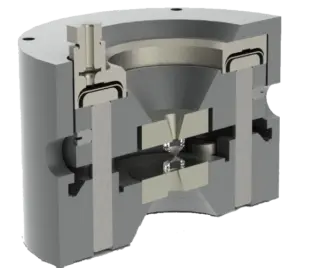

These Membrane Diamond Anvil Cell are aimed at performing high pressure experiments at a large range of temperatures.
All these MDACs are
Designed, manufactured and Produced by
BETSA® Company
Pressure range : 0 to 3 Mbar (depending on the culet size of the diamonds)
Temperature range :
- 10 K to 450 K. Standard version
- 10 K to 1000 K. High temperature version
...
A micro-valve attached to the membrane allows to disconnect the cell from its pressure controller while maintaining the pressure in the membrane
Pressure Ruby Luminescence
The [PRL] spectrometer (Pressure by Ruby Luminescence) has been designed for measuring pressures using the luminescence of a reference material (Ruby or SrB407 : Sm 2+).
Its small size and weight make "on site" measurements possible.When equipped with an internal mini laser it functions as a "stand alone" instrument.

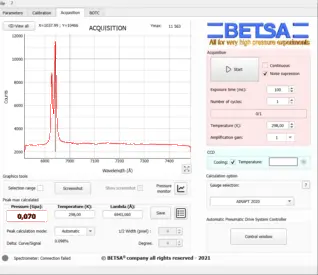

Measurements are very easy and fast with custom high pressure calculation software.
Optical Transfer
Its small size and weight make
"on site" measurements possible.
When equipped with an internal mini laser
it functions as a "stand alone" instrument.

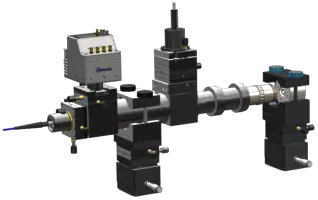

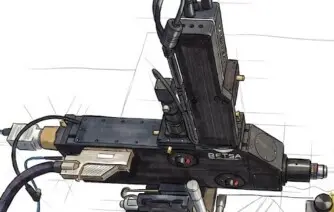

BETSA® Raman
Optical Transfer
The BETSA® Raman Optical Transfer [BROT] has been designed for measuring Raman spectroscopic properties of materials at high pressure.
Its small size and weight along with its fiber optics output to the spectrometer make "on site" measurements faster and easier.
When equipped with an internal mini laser it functions as a "stand alone" instrument.

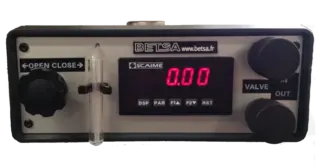

Pneumatic Drive System
The Pneumatic Drive System [PDS] is used to control the force applied to the MDAC anvil by varying the pressure in its membrane.
The small size, weight, and portability of the [PDS] allow its use in a variety of environments.

Automatic Pneumatic Drive System
The Automatic Pneumatic Drive System is a modular pressure controller.
The APDS controls the force applied to the MDAC anvils by varying
the gas pressure applied on its membrane.
The small size and weight, and the portability of the APDS
allow its use in narrow spaces.
