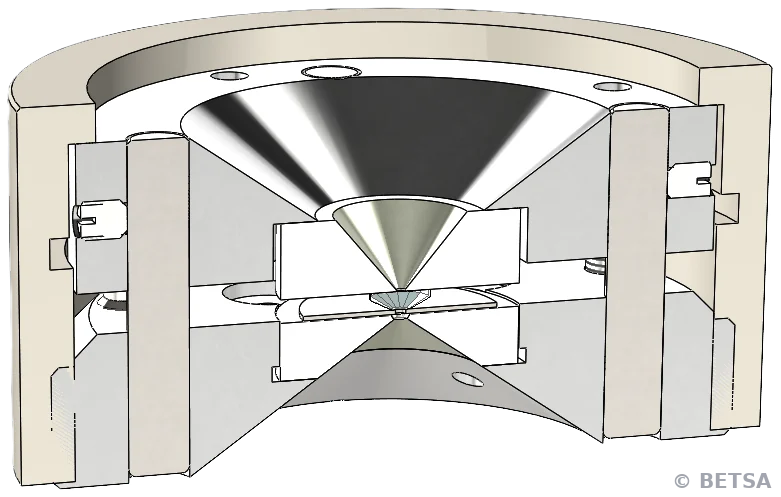

Membrane Diamond Anvil Cell
DAC-XC3-CS
Technical data
Performance
Maximum pressure
300GPa
Temperature range
Room temperature · RT to 450K
Optical access
Full angle apertures
80°/110°
Dimensions
Height
24.50 mm
Diameter
Ø 50 mm (1.97″)
Composition
Standard anvils
1
Conical anvils
1
Cover
1
Piston
1
Cylinder
1
Dowels
4
Seats
2
Materials
Materials
Inconel, hardened steel, steel, stainless steel, tungsten carbide – WC
Other features — screw (4 right and/or gearbox screw
