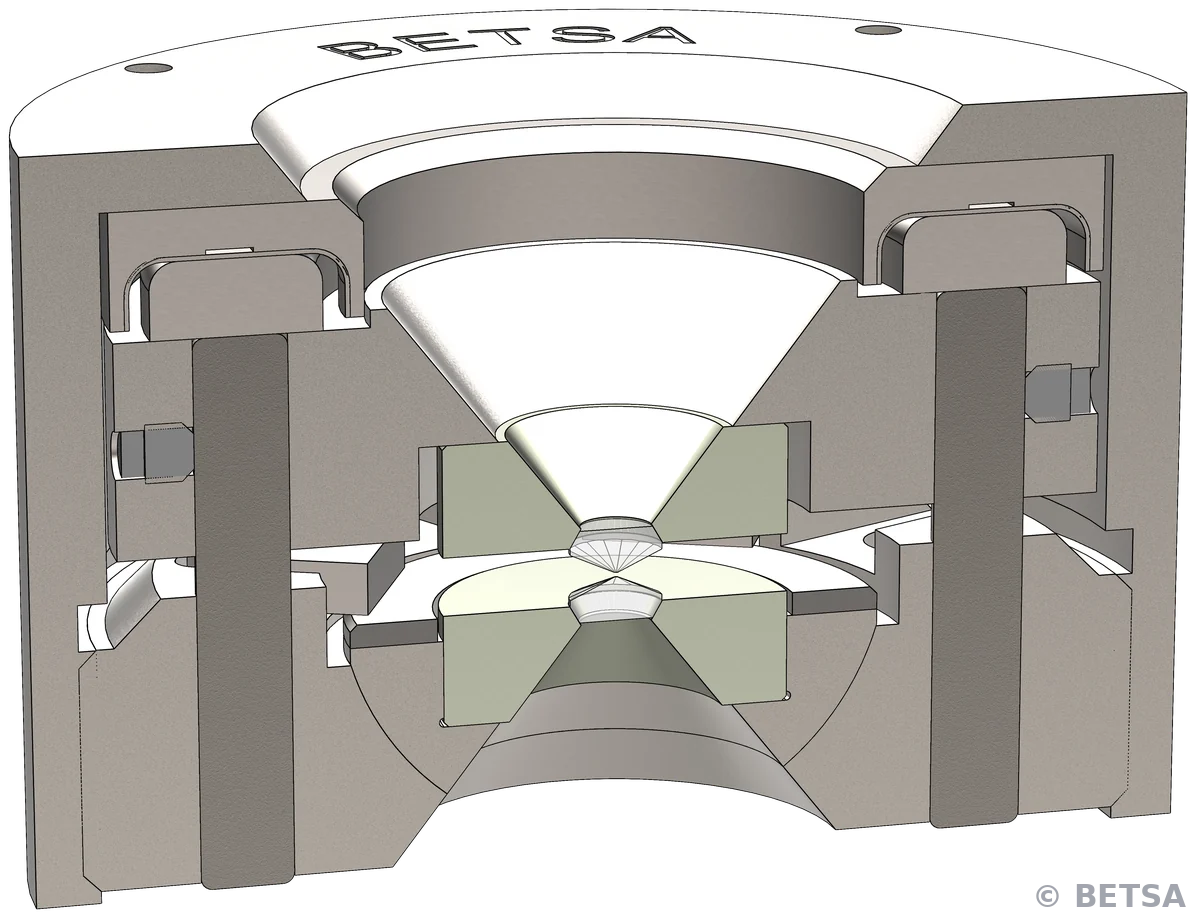

Membrane Diamond Anvil Cell
M-DAC-XCV
Technical data
Performance
Maximum pressure
150 GPa
Temperature range
Room temperature · 450K
Optical access
Full angle apertures
76°/76°
Working distance
≥ 13 mm
Dimensions
Height
32 mm (1.26″)
Diameter
Ø 50 mm (1.97″)
Composition
Conical anvils
2
Cover
1
Piston
1
Cylinder
1
Dowels
4
Rockers
1
Seats
2
External adjustment -bridles
4
Materials
Materials
Inconel, hardened steel, steel, tungsten carbide – WC
Drive and clamping
Membrane
soldered · with screw · lateral soldered · and/or combined with screw
Manual
Clamping by manual screw (2 left/2 right) · Manual screw (4 right and/or gearbox screw
Other features — Holes can be drilled for access next to the sample to:
- setup Thermocouples
- setup Electrical connectors (electrical measurements)
