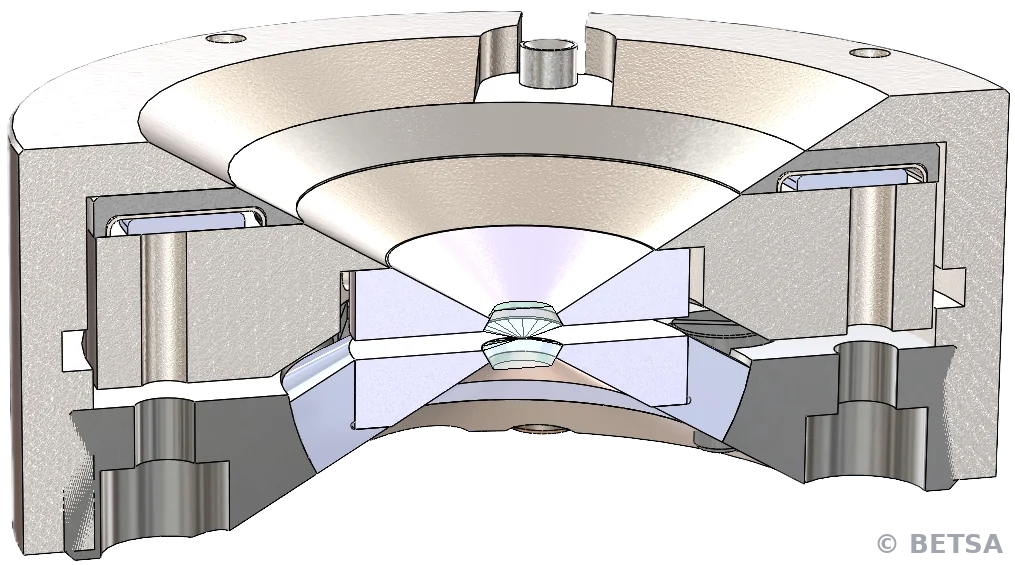

Membrane Diamond Anvil Cell
M-DAC-BHP-CS-110
Technical data
Performance
Maximum pressure
20-30 GPa
Temperature range
Low temperature · 4K to 450K

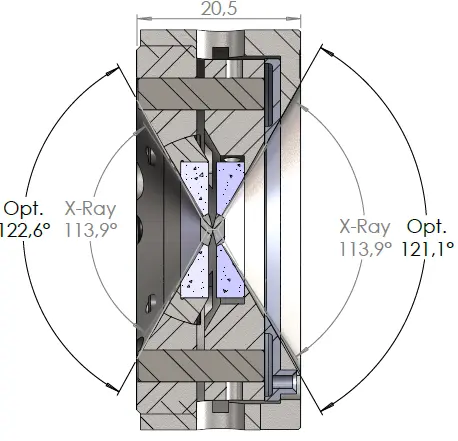

Optical access
Optical access
Optical Full angle apertures 110°/110°
Optical access
X-Ray Full angle apertures 113°/113°
Dimensions
Height
20.5 mm
Diameter
Ø 50 mm
Composition
Standard anvils
2
Cover
1
Piston
1
Cylinder
1
Dowels
4
Rockers
1
Seats
2
Adjustment screws
4
Materials
Materials
Inconel High temperature, hardened steel, steel, stainless steel, tungsten carbide – WC
Drive and clamping
Membrane
soldered · soldered HT · with screw · lateral soldered · and/or combined with screw
Manual
Clamping by manual screw (2 left/2 right)
Other features — Holes can be drilled for access next to the sample to:
- setup Thermocouples
- setup Electrical connectors (electrical measurements)
