M-DAC-LT-LOW-CS

Membrane Diamond Anvil Cell

M-DAC-LT-LOW-CS

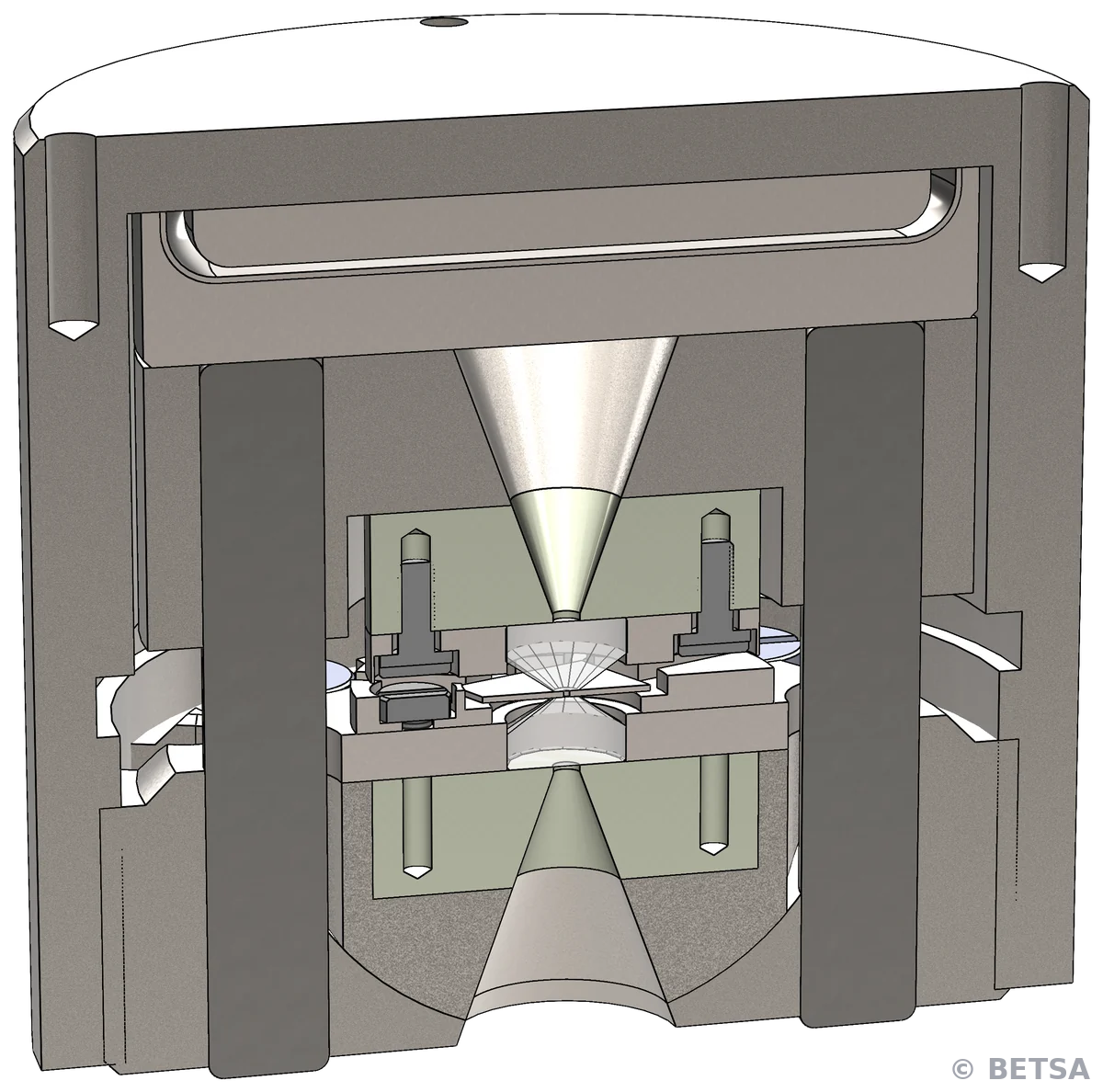

M-DAC-LT-LOW-CS membrane diamond anvil cell – BETSA®

Technical data

Performance

Maximum pressure
30 GPa
Temperature range
Low temperature · 4K to 450K

Optical access

Full angle apertures
0-40°/40°

Dimensions

Height
30.5 mm (1.20″)
Diameter
Ø 35 mm (1.37″)

Composition

Standard anvils
2
Cover
1
Piston
1
Cylinder
1
Dowels
4
Rockers
1
Seats
2
Adjustment screws
4

Materials

Materials
Inconel High temperature, hardened steel, steel, stainless steel, tungsten carbide – WC

Drive and clamping

Membrane
soldered · and/or combined with screw
Manual
Clamping by manual screw (2 left/2 right)
Other features — Holes can be drilled for access next to the sample to:
  • setup Thermocouples
  • setup Electrical connectors (electrical measurements)

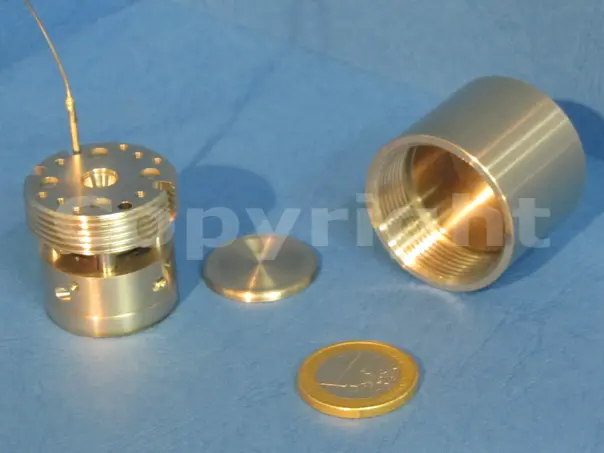

M-DAC-LT-LOW-CS membrane diamond anvil cell – view 2 – BETSA®

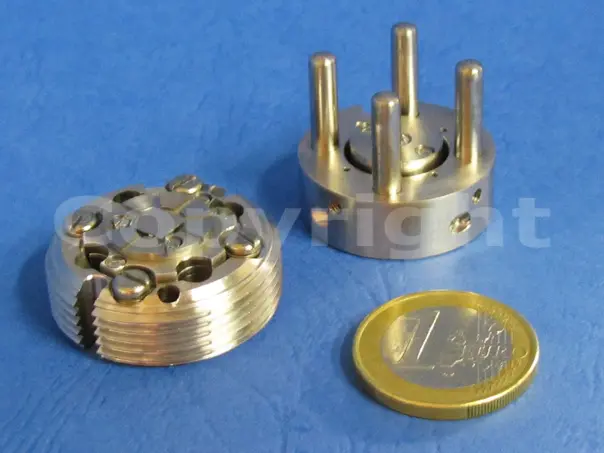

M-DAC-LT-LOW-CS membrane diamond anvil cell – view 3 – BETSA®

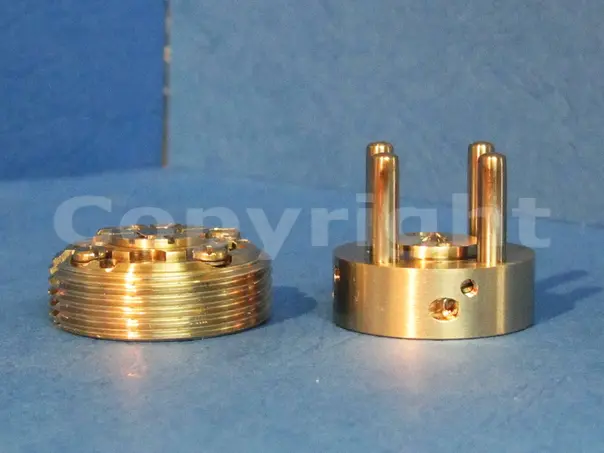

M-DAC-LT-LOW-CS membrane diamond anvil cell – view 4 – BETSA®

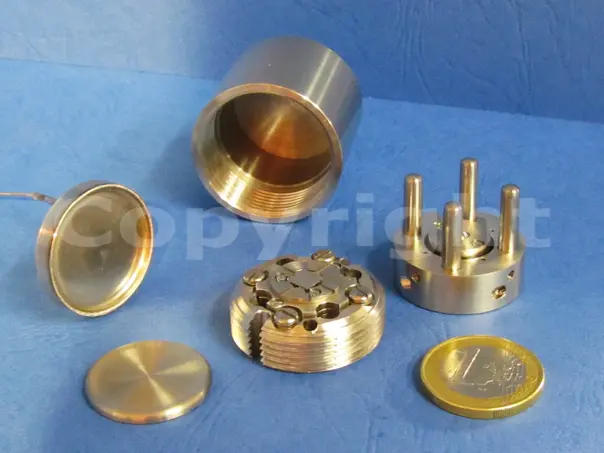

M-DAC-LT-LOW-CS membrane diamond anvil cell – view 5 – BETSA®

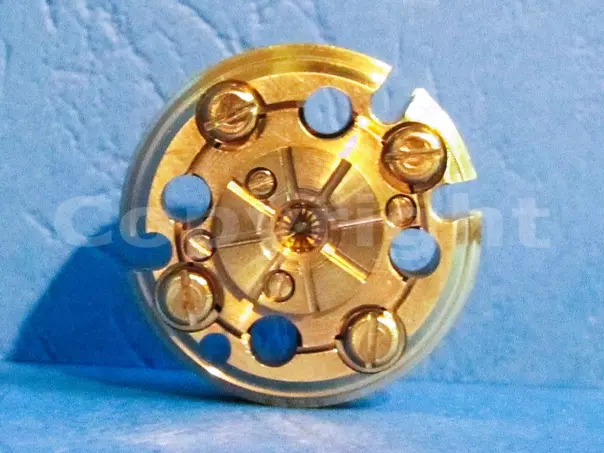

M-DAC-LT-LOW-CS membrane diamond anvil cell – view 6 – BETSA®
Back to the MDAC range
