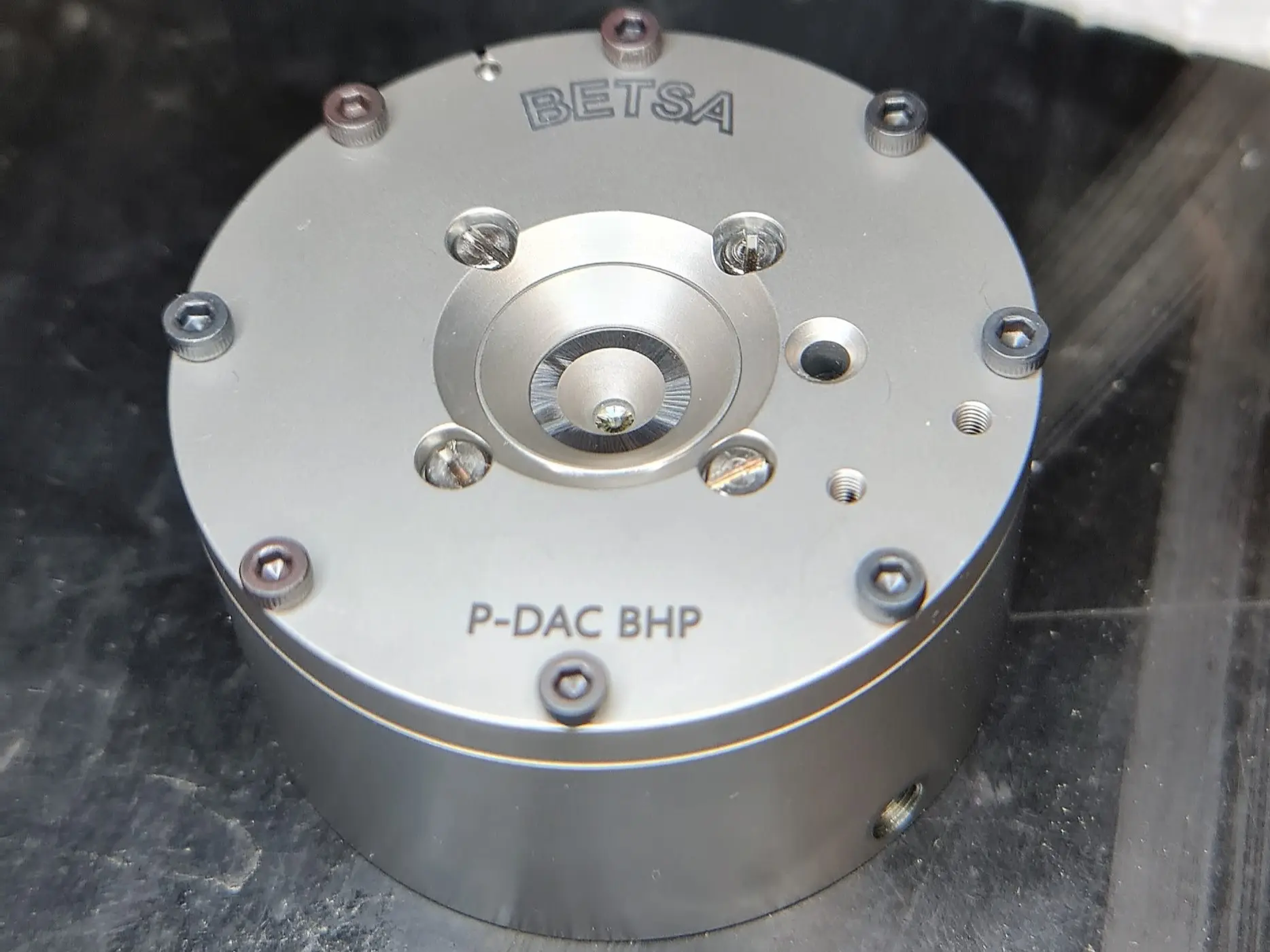

Membrane Diamond Anvil Cell
P-DAC
Technical data
Performance
Maximum pressure
0.02-4 GPa
Temperature range
Room temperature · -20°C to 230°C
Optical access
Full angle apertures
100°/100°
Working distance
≥ 10.3 mm
Dimensions
Height
30.1 mm (1.18″)
Diameter
Ø 59 mm (2.32″)

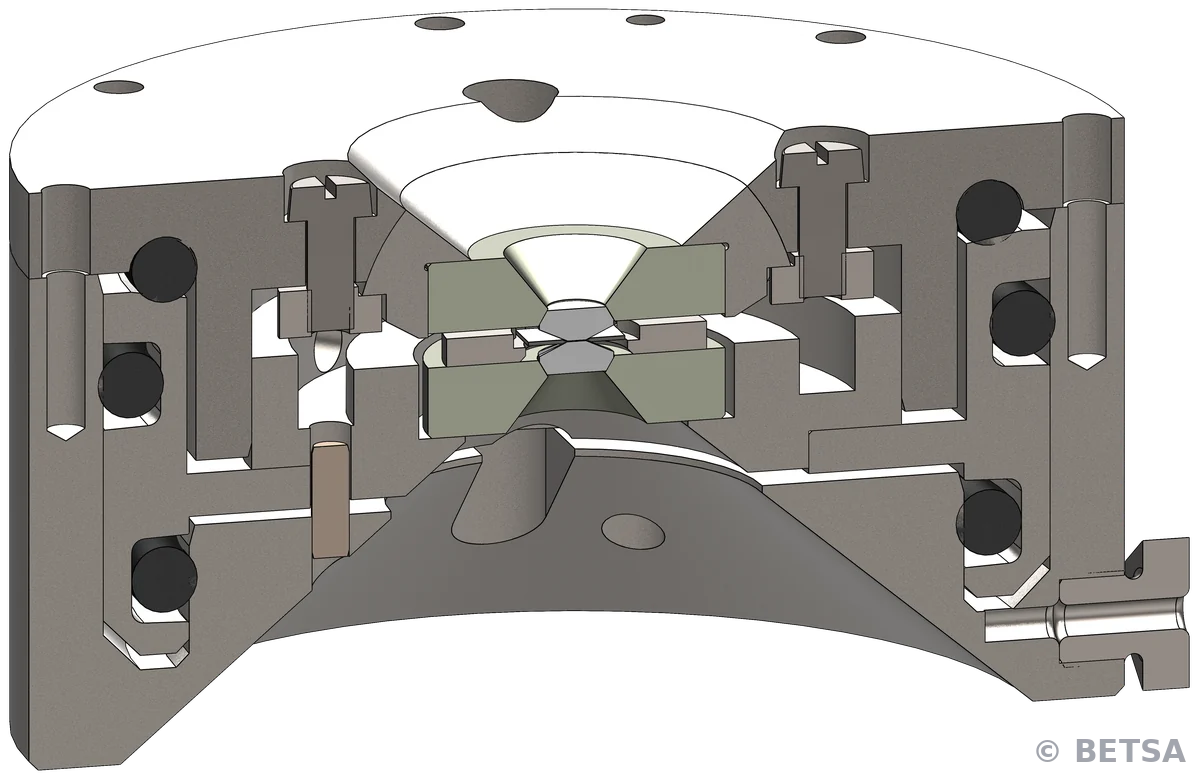

Composition

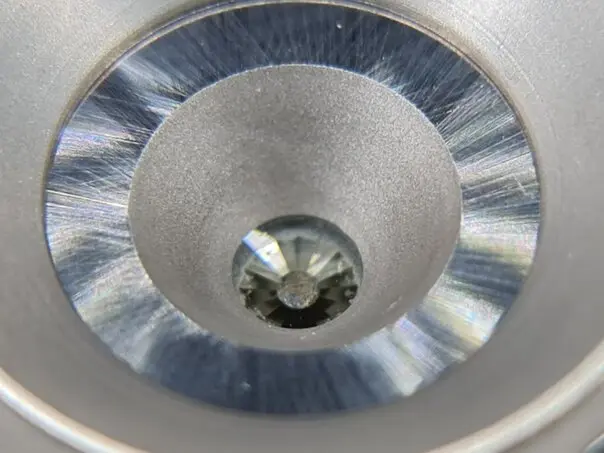

Conical anvils
2
Cover
1
Piston
1
Cylinder
1
Rockers
1
Seats
2
External adjustment – bridles
4
Materials
Materials
Inconel, steel, stainless steel, tungsten carbide – WC
Drive and clamping
Membrane
Cover
Other features — Holes can be drilled for access next to the sample to:
- setup Thermocouples
- setup Electrical connectors (electrical measurements)
