DAC-XCV-CS-(LOW)

Membrane Diamond Anvil Cell

DAC-XCV-CS-(LOW)

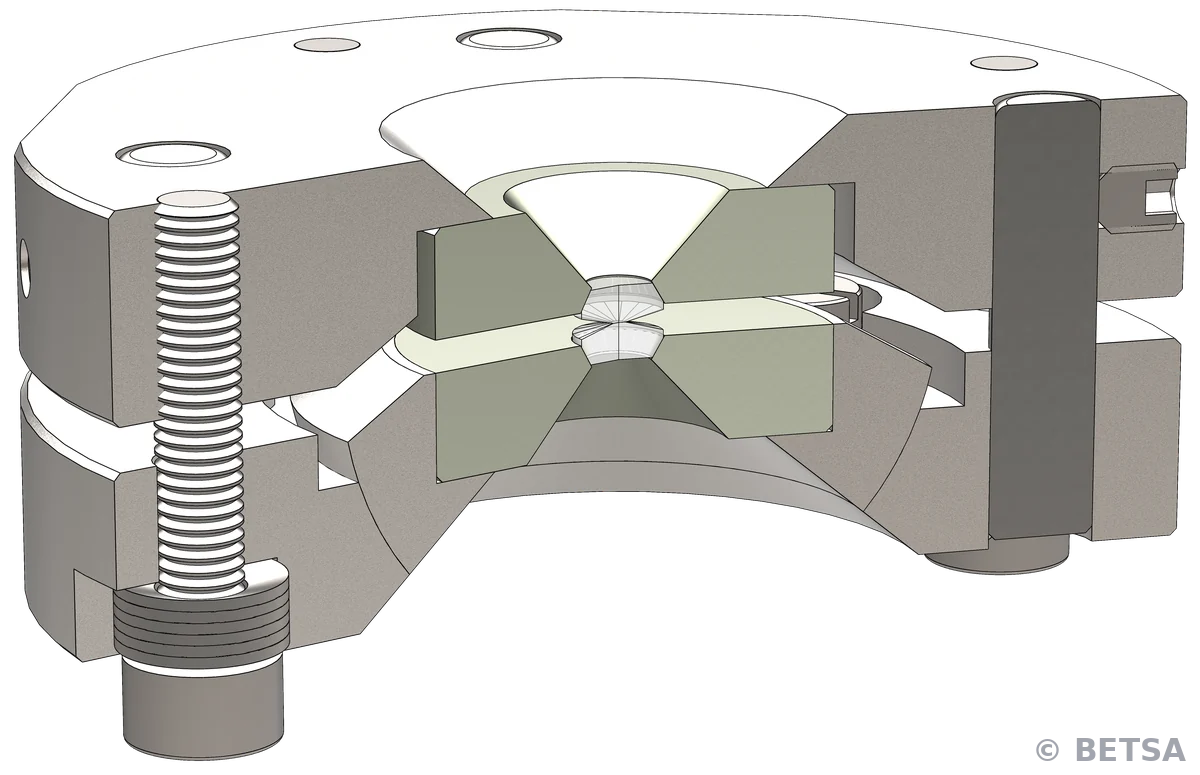

DAC-XCV-CS-(LOW) diamond anvil cell – BETSA®

Technical data

  • DAC-XCV-CS-(LOW)
  • large range temperature.
  • Without Membrane
  • 50 GPa
  • 4K to 1000K
  • Full angle apertures 100°/100°
  • Height: 17 mm (0.67″)
  • Ø : Ø 42.60 mm (1.65″)
  • 2x Conical anvils
  • 1x Piston
  • 1x Cylinder
  • 4x Dowels
  • 1x Rockers
  • 2x Seats
  • 4x adjustment screws
  • Inconel High temperature
  • (Beryllium copper – CuBe2)
  • hardened steel
  • steel
  • stainless steel
  • tungsten carbide – WC
  • Clamping by manual screw (2 left/2 right)
  • Manual screw (4 right and/or gearbox screw
  • Are you looking for a high-pressure experiment setup without a membrane but with a ball joint to adjust the diamonds? Look no further than the BETSA® DIAMOND ANVIL CELL! This unique DAC model in the BETSA® range offers these features for your experiments.
  • Other features: Holes can be drilled for access next to the sample to:
  • -setup Thermocouples
  • -setup Electrical connectors (electrical measurements)
DAC-XCV-CS-(LOW) diamond anvil cell – view 2 – BETSA®
DAC-XCV-CS-(LOW) diamond anvil cell – view 3 – BETSA®

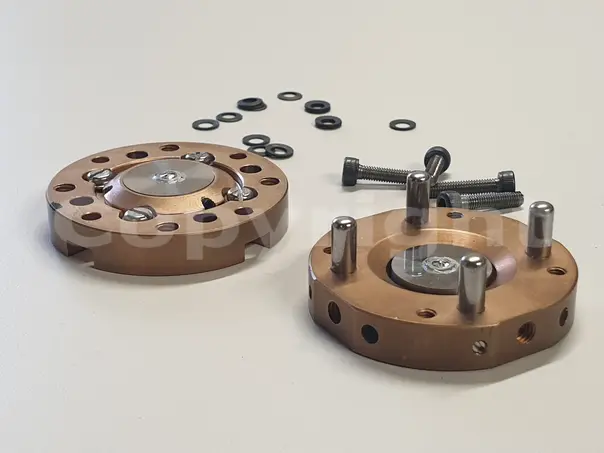

DAC-XCV-CS-(LOW) diamond anvil cell – view 4 – BETSA®

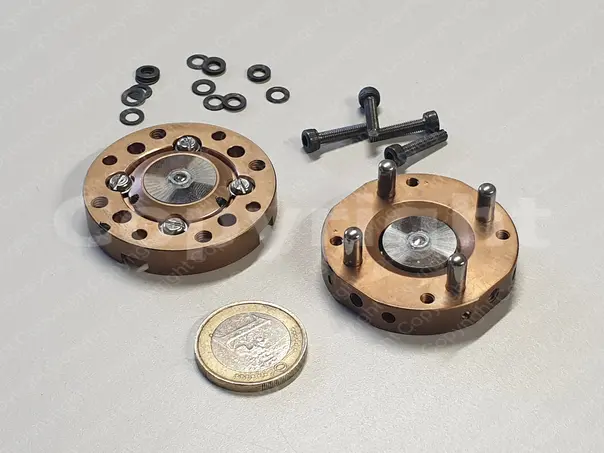

DAC-XCV-CS-(LOW) diamond anvil cell – view 5 – BETSA®
DAC-XCV-CS-(LOW) diamond anvil cell – view 6 – BETSA®
