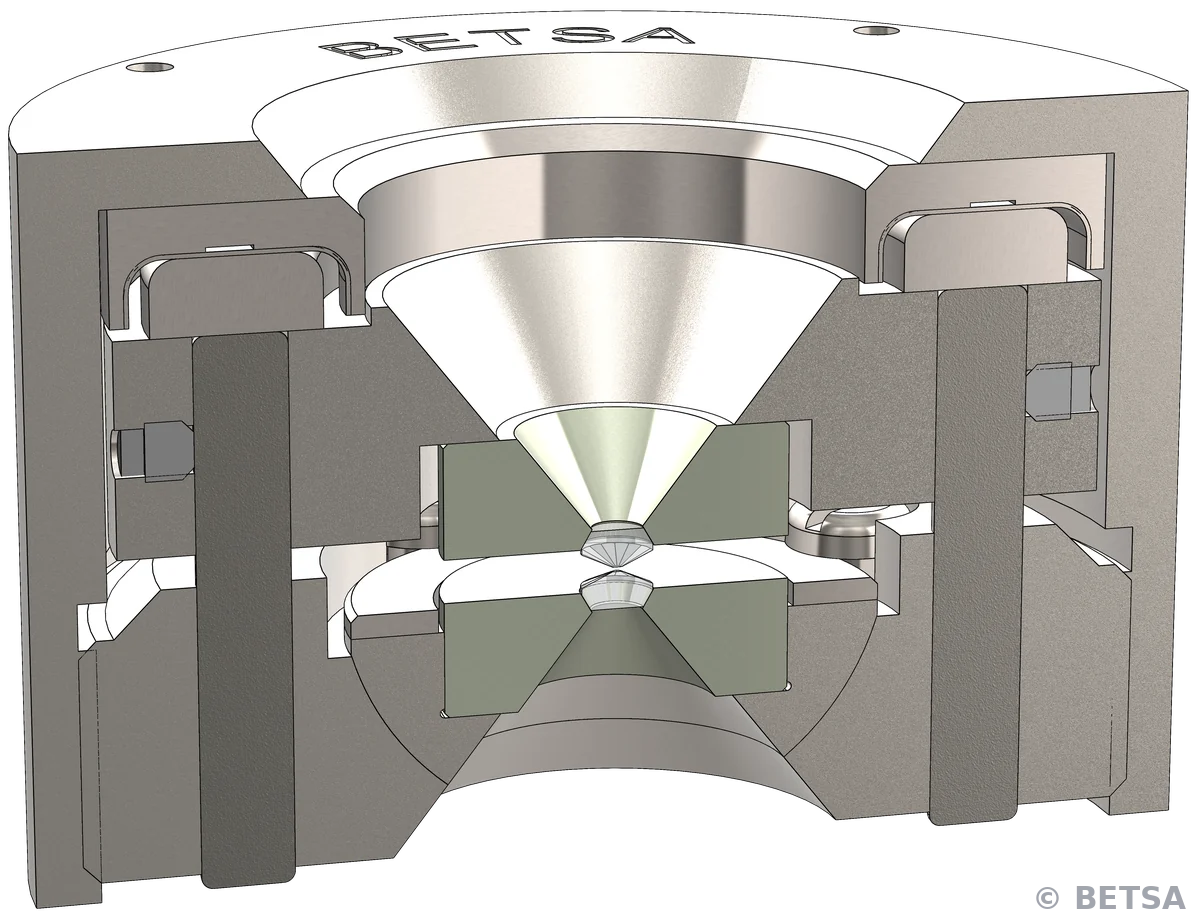

Membrane Diamond Anvil Cell
M-DAC-XCV-THT
Technical data
Performance
Maximum pressure
100 GPa
Temperature range
Wide temperature range · 4K to 1000K
Optical access
Full angle apertures
76°/76°
Working distance
≥ 13 mm
Dimensions
Height
32 mm (1.26″)
Diameter
Ø 50 mm (1.97″)

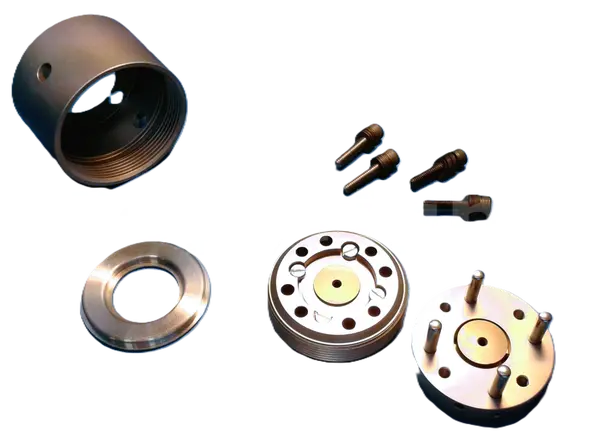

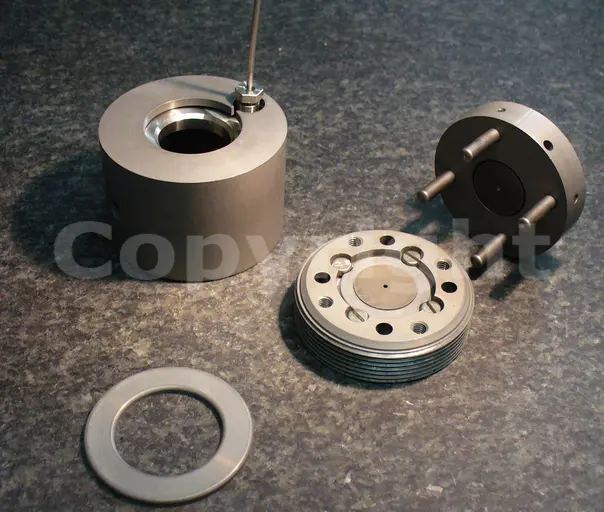

Composition
Conical anvils
2
Cover
1

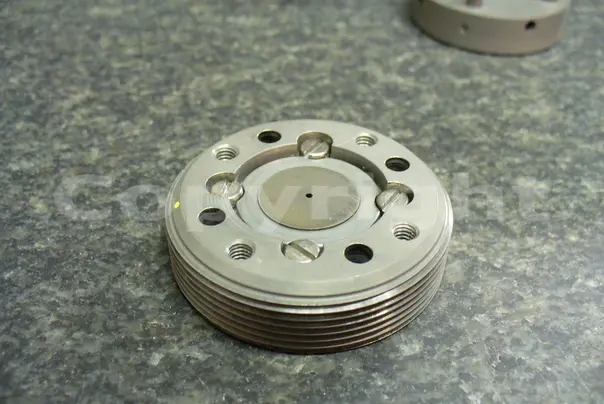

Piston
1
Cylinder
1

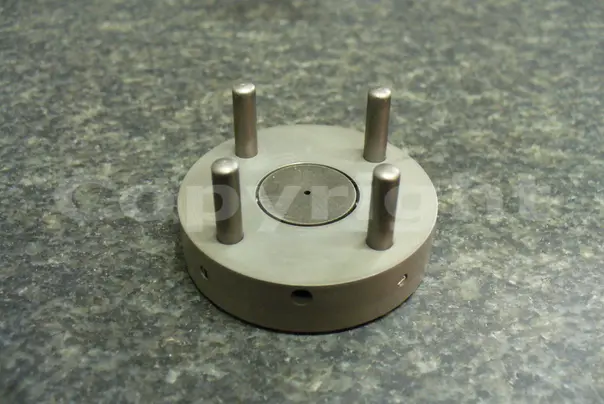

Dowels
4
Rockers
1
Seats
2
Internal adjustment – adjustment screws
4
Materials
Materials
Inconel High temperature, hardened steel, steel, stainless steel, tungsten carbide – WC, TiBe2 (1200 °C continuous), zirconia – ZrO2
Drive and clamping
Membrane
soldered HT · with screw · and/or combined with screw
Manual
Clamping by manual screw (2 left/2 right) · Manual screw (4 right) and/or gearbox screw
Other features — Holes can be drilled for access next to the sample to:
- set up thermocouples
- set up electrical connectors (electrical measurements)
