M-DAC-XBC-(LOW)

Membrane Diamond Anvil Cell

M-DAC-XBC-(LOW)

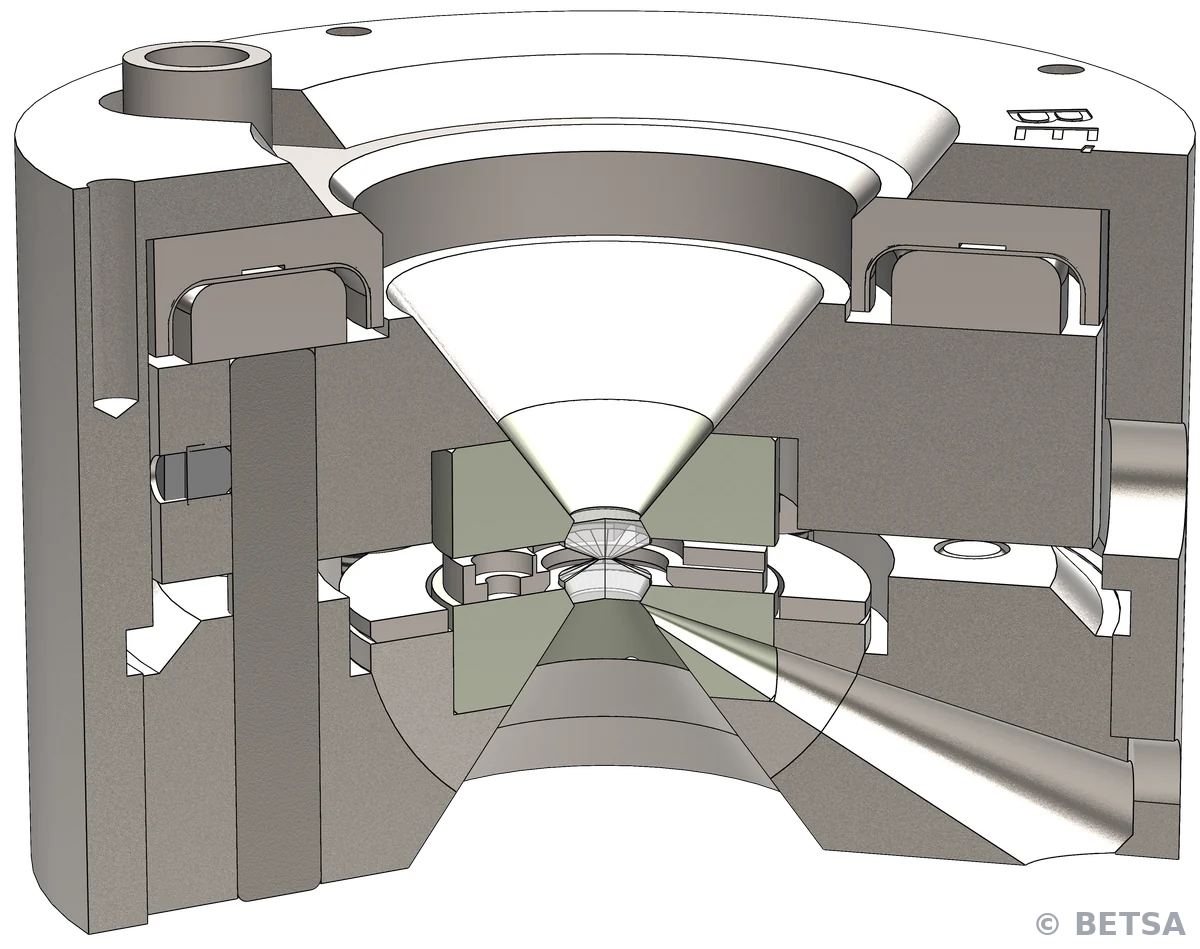

M-DAC-XBC-(LOW) membrane diamond anvil cell – BETSA®

Technical data

  • M-DAC-XBC-(LOW)
  • large range temperature.
  • 100 GPa
  • 4K to 1000K
  • Full angle apertures 76°/76°
  • 2X cone 16° – brewster angle 135°
  • Working distance ≥ 13 mm
  • Height: 32 mm (1.26″)
  • Diameter: Ø 50 mm (1.97″)
  • 2x Conical anvils
  • 1x Cover
  • 1x Piston
  • 1x Cylinder
  • 4x Dowels
  • 1x Rockers
  • 2x Seats
  • 4x Internal adjustment – adjustment screws
  • Inconel
  • hardened steel
  • steel
  • stainless steel
  • tungsten carbide – WC
  • Membrane soldered
  • Membrane with screw
  • Membrane lateral soldered
  • Other features: Holes can be drilled for access next to the sample to:
  • -setup Thermocouples
  • -setup Electrical connectors (electrical measurements)
M-DAC-XBC-(LOW) membrane diamond anvil cell – view 2 – BETSA®
M-DAC-XBC-(LOW) membrane diamond anvil cell – view 3 – BETSA®
M-DAC-XBC-(LOW) membrane diamond anvil cell – view 4 – BETSA®
