Composition

Conical anvils

2

Cover

1

Piston

1

Cylinder

1

Dowels

4

Rockers

2

Seats

2

External adjustment – bridles

8

Performance

Maximum pressure

200-300 GPa

Temperature range

Low temperature · 4K to RT

Optical access

Full angle apertures

76°/76°

Working distance

≥ 13 mm

Dimensions

Height

32 mm (1.26″)

Diameter

Ø 50 mm (1.97″)

Materials

DAC body material

Beryllium copper – CuBe2

Screws and other parts

Beryllium copper – CuBe2, stainless steel 316

Seats and rocker

Zirconia – ZrO2

Drive and clamping

Membrane

soldered · soldered HT · with screw · lateral soldered · and/or combined with screw

Manual

Clamping by manual screw (2 left/2 right) · Manual screw (4 right and/or gearbox screw

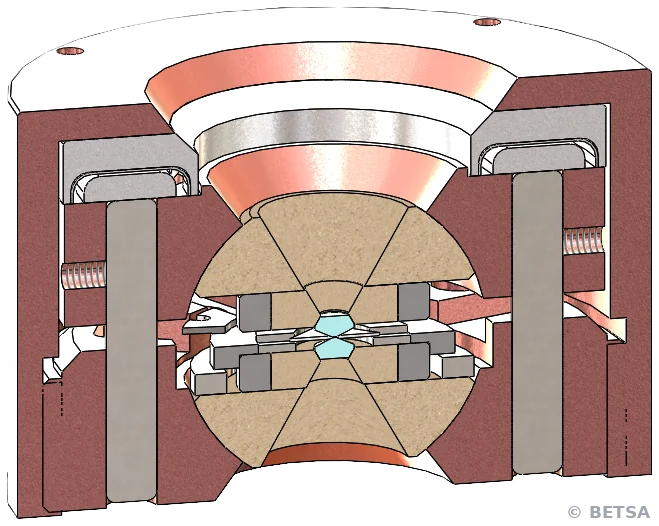

M-DAC-UHP-LOW-AMA-CS
