M-DAC-BHP-SP

Membrane Diamond Anvil Cell

M-DAC-BHP-SP

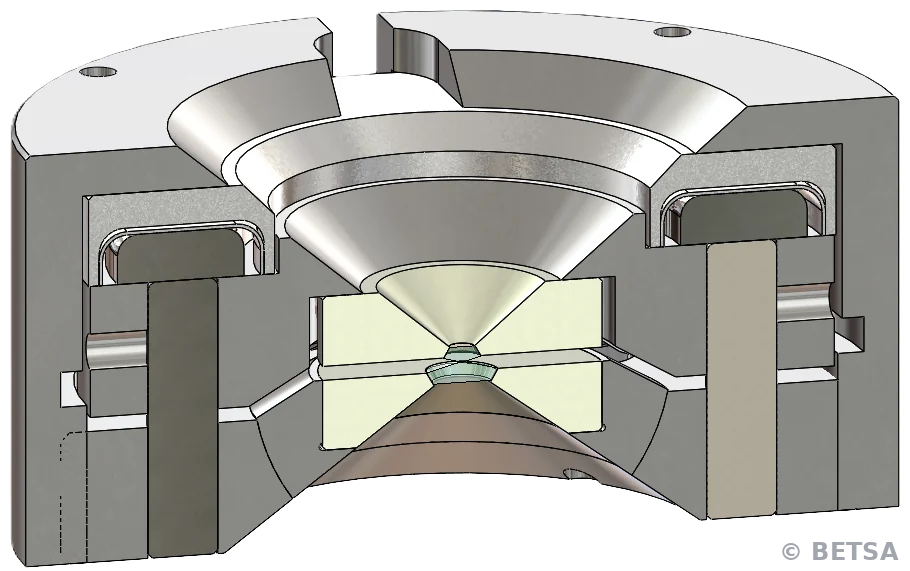

M-DAC-BHP-SP membrane diamond anvil cell – BETSA®

Technical data

  • large range temperature.
  • 10 -15 GPa
  • 4K to 450K
  • Full angle apertures 104°/80°
  • Working distance ≥ 13 mm
  • Height: 24.5 mm (0.96″)
  • Diameter: Ø 50 mm (1.97″)
  • 2x Conical anvils
  • 1x Cover
  • 1x Piston
  • 1x Cylinder
  • 4x Dowels
  • 1x Rockers
  • 2x Seats
  • 4x Adjustment screws
  • Inconel
  • hardened steel
  • steel
  • stainless steel
  • tungsten carbide – WC
  • Membrane soldered
  • Membrane soldered HT
  • Membrane with screw
  • Membrane lateral soldered
  • Membrane and/or combined with screw
  • Clamping by manual screw (2 left/2 right)
  • Manual screw (4 right and/or gearbox screw
  • Other features: Holes can be drilled for access next to the sample to:
  • -setup Thermocouples
  • -setup Electrical connectors (electrical measurements)

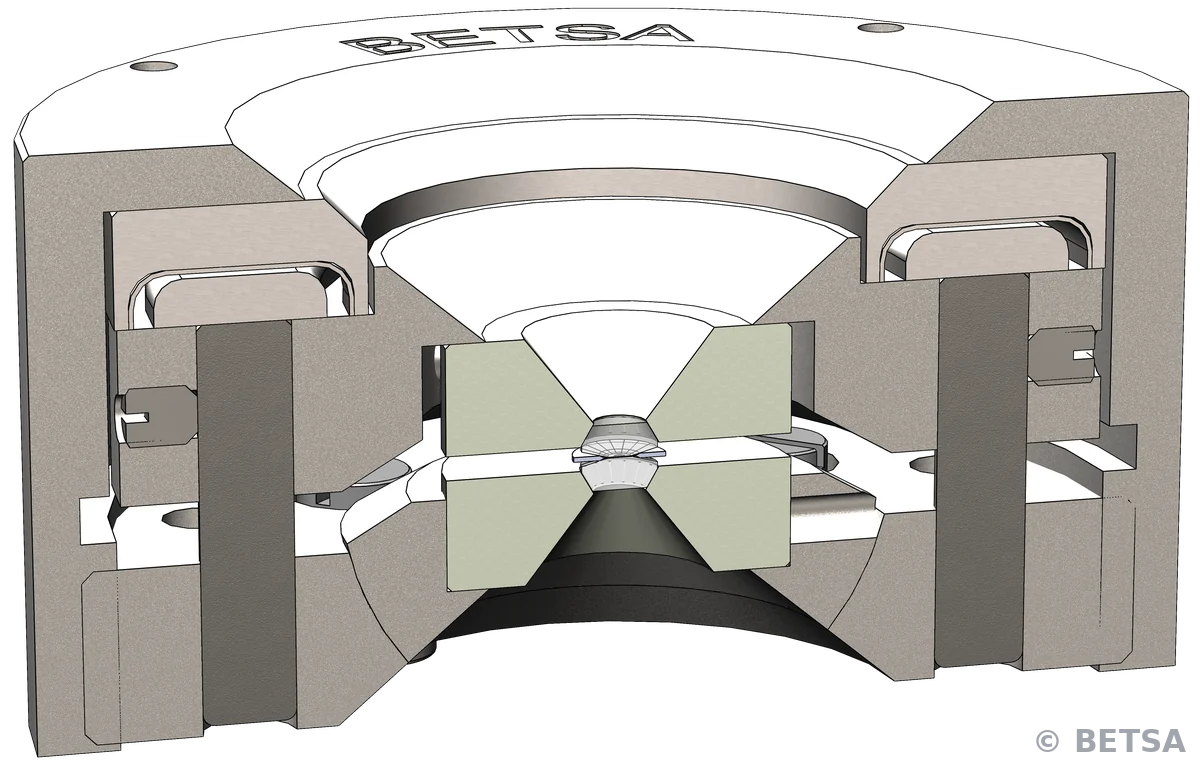

M-DAC-BHP-SP membrane diamond anvil cell – view 2 – BETSA®

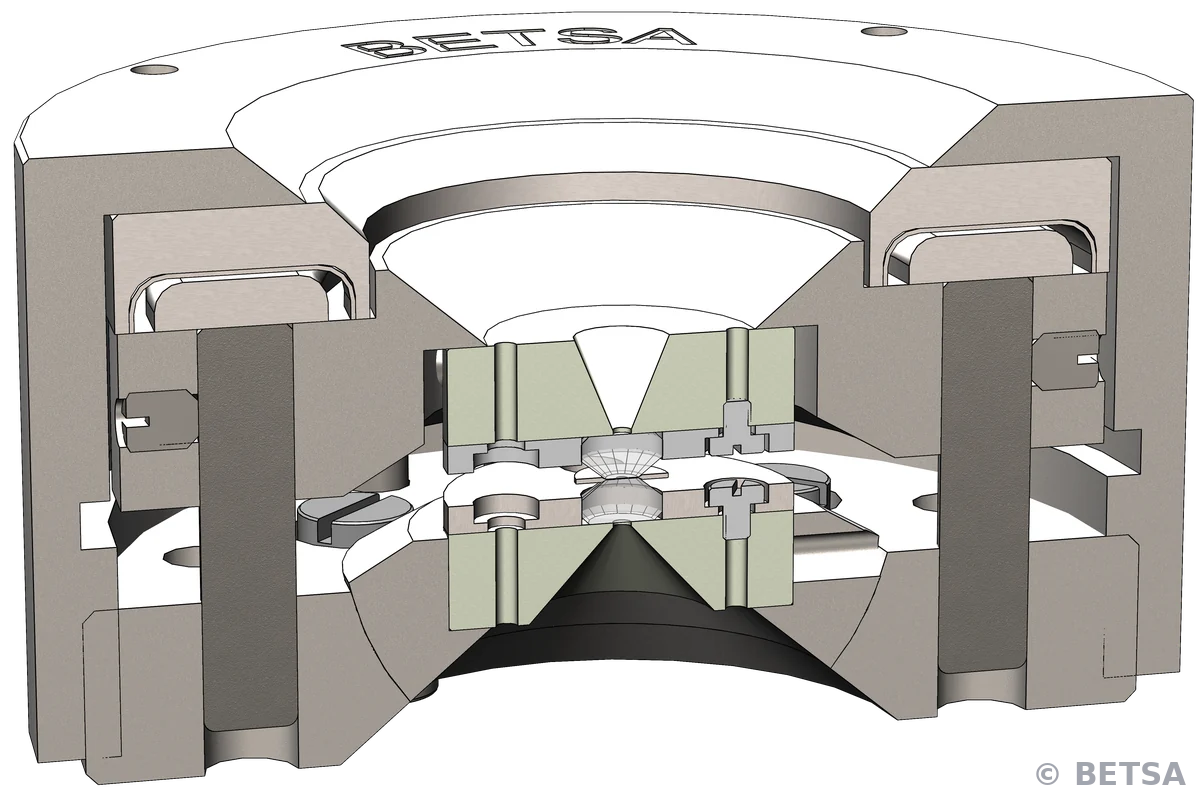

M-DAC-BHP-SP membrane diamond anvil cell – view 3 – BETSA®
M-DAC-BHP-SP membrane diamond anvil cell – view 4 – BETSA®
