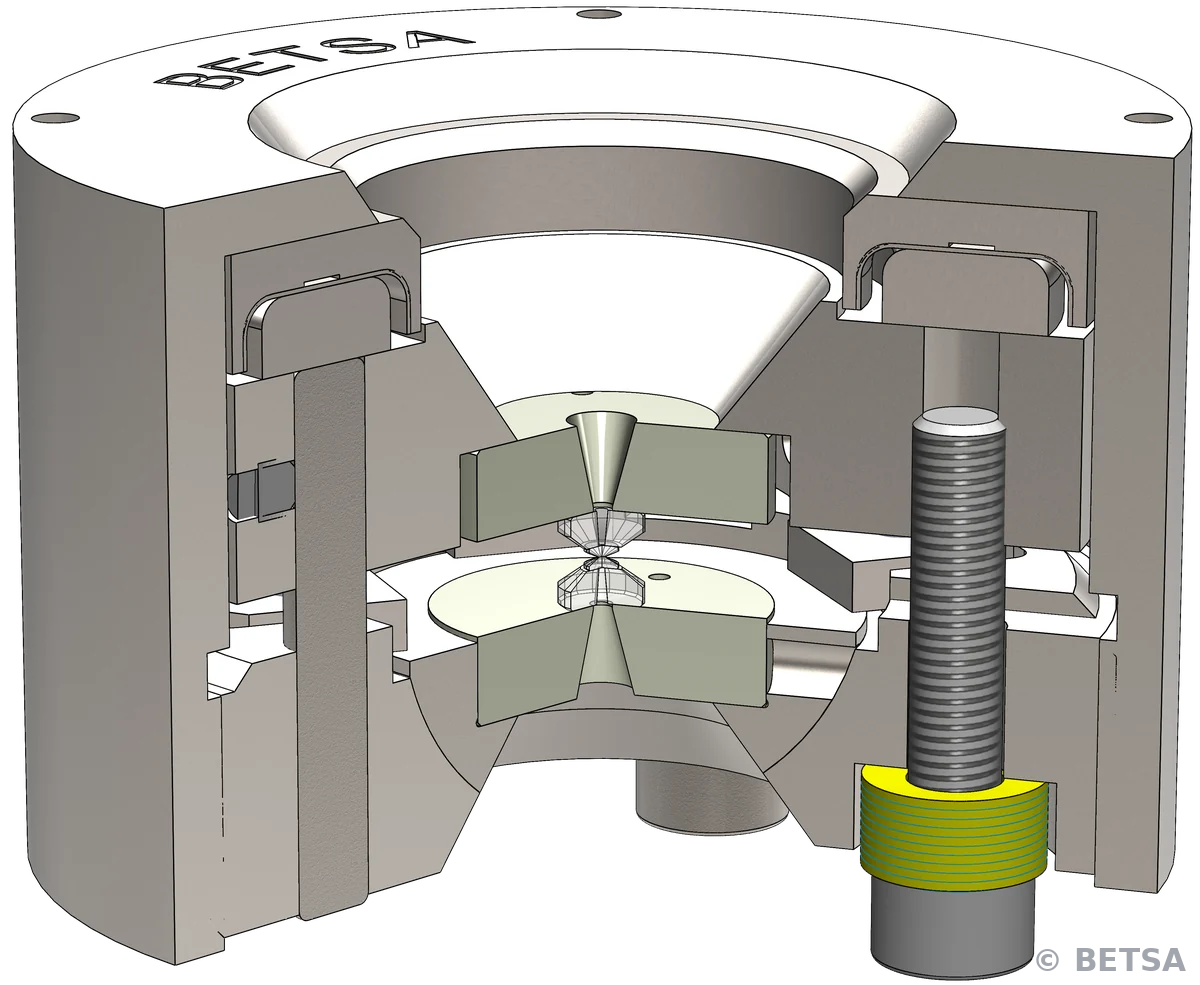

Membrane Diamond Anvil Cell
M-DAC-XDR-CS-PA
Technical data
- large range temperature.
- 50 GPa
- 4K to 1000K

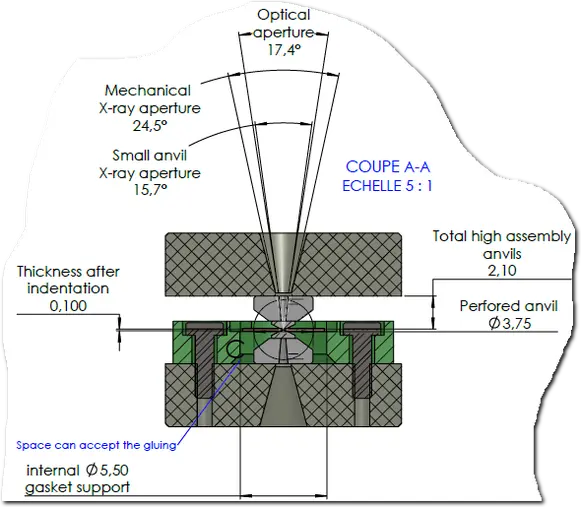

- Full angle apertures 15°/15°
- Working distance ≥ 13 mm
- Height: 24.5 mm (0.96″)
- Diameter: Ø 50 mm (1.97″)

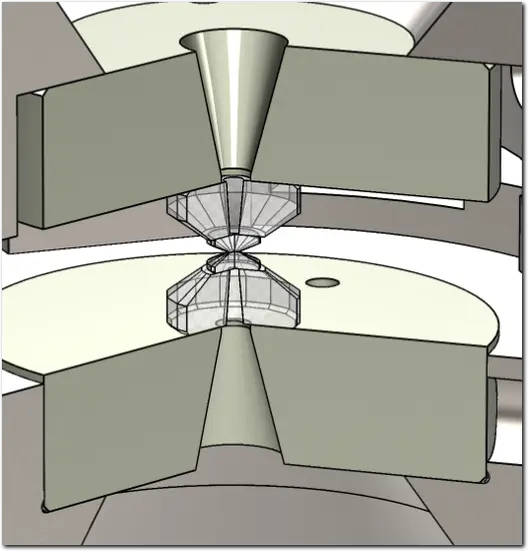

- 2x Standard perfored anvils
- 2x Standard anvils
- 1x Cover
- 1x Piston
- 1x Cylinder
- 4x Dowels
- 1x Rockers
- 2x Seats
- 4x Internal adjustment screws
- Inconel High temperature
- hardened steel
- steel
- stainless steel
- tungsten carbide – WC
- Membrane soldered
- Membrane soldered HT
- Membrane with screw
- Membrane lateral soldered
- Membrane and/or combined with screw
- Clamping by manual screw (2 left/2 right)
- Manual screw (4 right and/or gearbox screw
- Other features: Holes can be drilled for access next to the sample to:
- -setup Thermocouples
- -setup Electrical connectors (electrical measurements)
