Membrane Diamond Anvil Cell
M-DAC-XCV-THT-IHS
Technical data

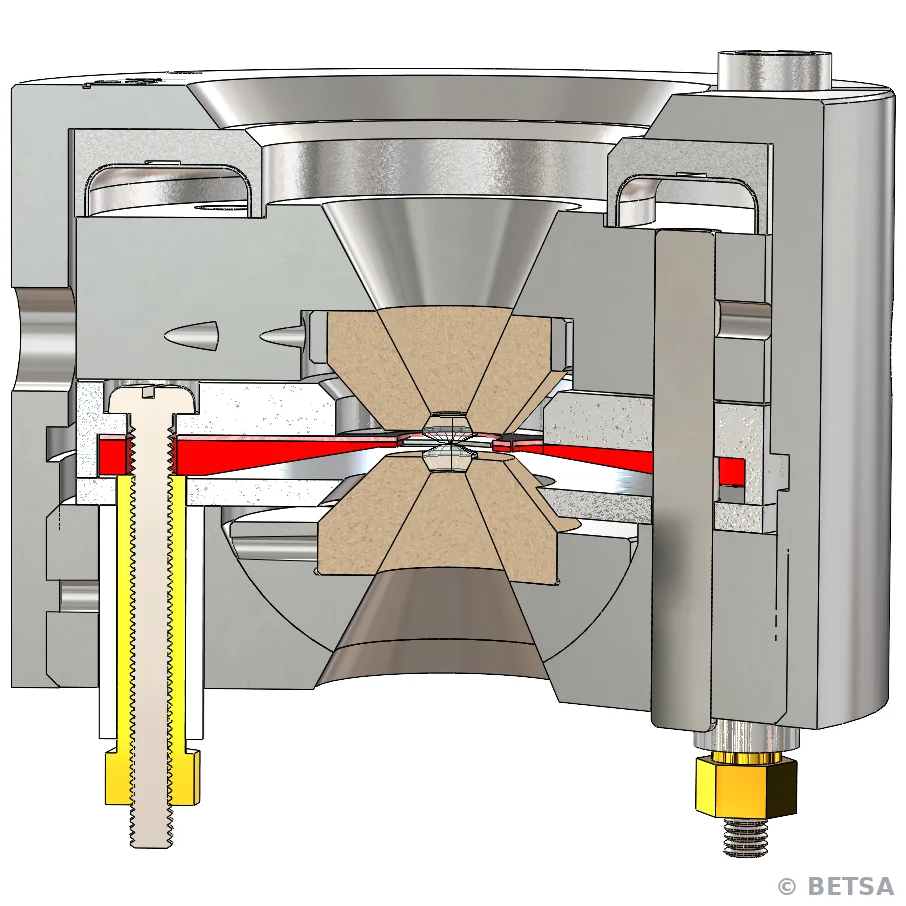

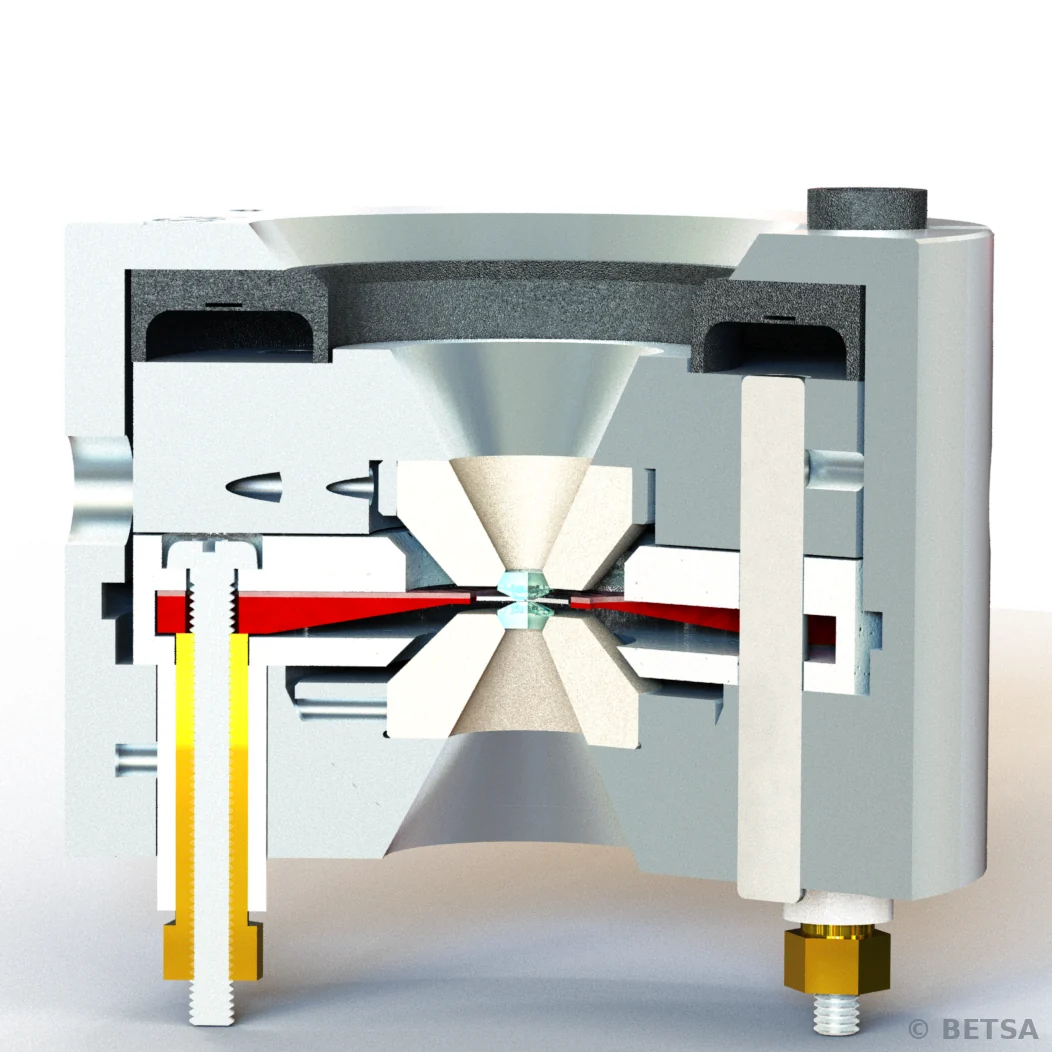

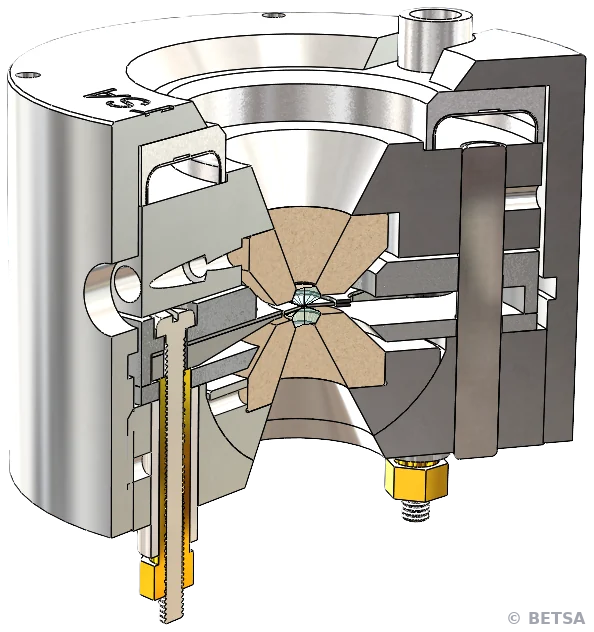

M-DAC-XCV-THT-IHS — large range temperature design with an Internal Heating System.

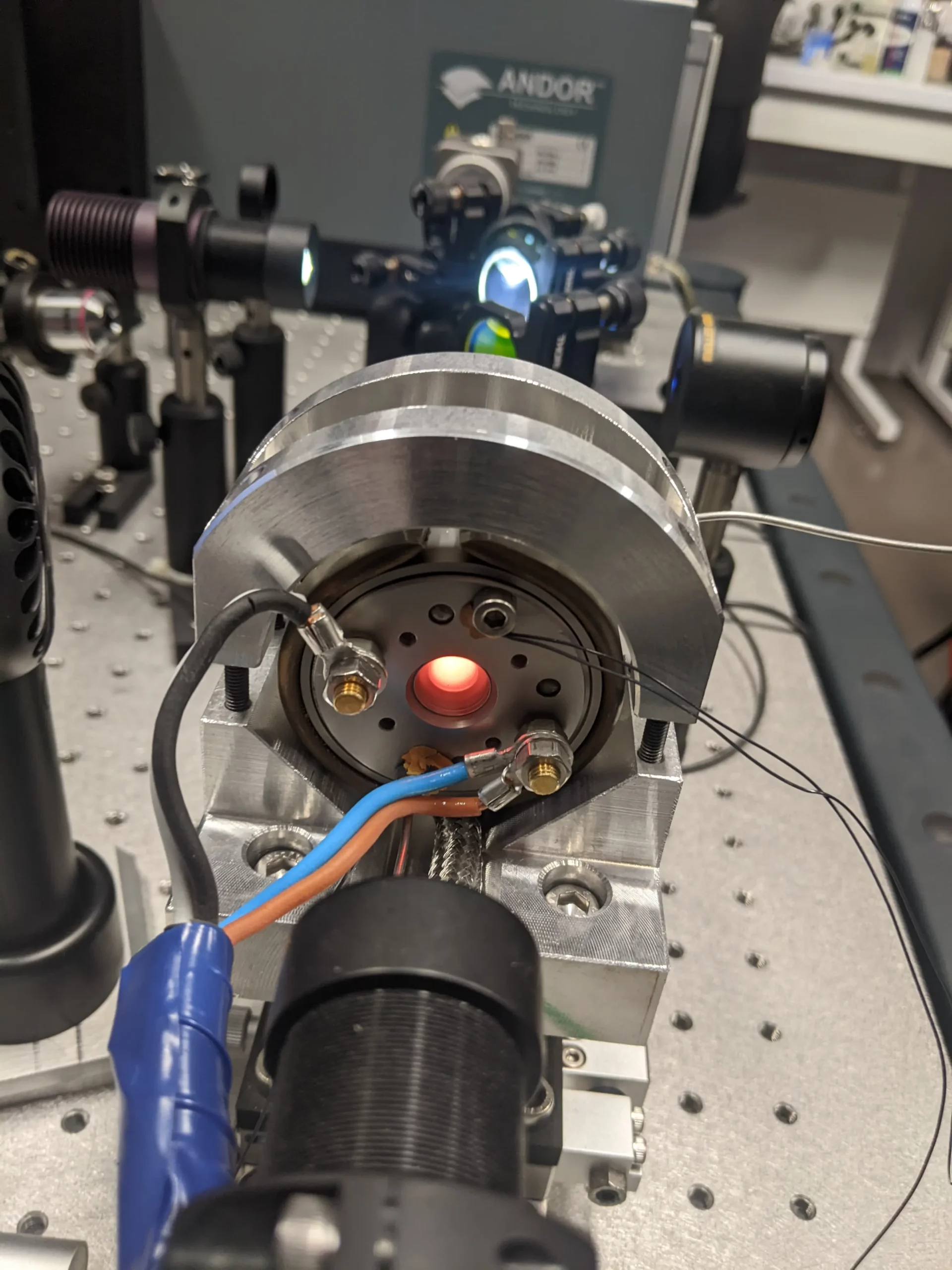

We’ve developed an internal heating system that can reach temperatures up to 1450 °C continuously and in the air. Our 3D printed IHS can be customized to fit your specific needs and environment.
Performance
Maximum pressure
100 GPa
Temperature range
4K to 1000K/1700K
Internal heating
Up to 1450 °C continuously, in the air
Optical access
Full angle apertures
57°/57°
Working distance
20.47 / 27.30 mm
Dimensions
Height
34.50 mm
Diameter
Ø 50 mm (1.97″)
Composition
Conical anvils
2
Cover
1
Piston
1
Cylinder
1
Dowels
4
Rockers
1
Seats
2
Materials
Materials
Inconel High temperature, hardened steel, steel, stainless steel, tungsten carbide – WC, Zyrconium – ZrO2
Drive and clamping
Membrane
soldered · soldered HT · with screw · lateral soldered
Other features — Holes can be drilled for access next to the sample to:
- setup Thermocouples
- setup Electrical connectors (electrical measurements)
