M-DAC-LOW-AMA

Membrane Diamond Anvil Cell

M-DAC-LOW-AMA

M-DAC-LOW-AMA membrane diamond anvil cell – BETSA®

Technical data

Performance

Maximum pressure
100 GPa
Temperature range
Low temperature · RT to 450K

Optical access

Full angle apertures
60°/60°
Working distance
≥ 9 mm

Dimensions

Height
28.4 mm
Diameter
Ø 36 mm

Composition

Conical anvils
2
Cover
1
Piston
1
Cylinder
1
Dowels
4
Rockers
2
Seats
2
Internal adjustment Bridles
8

Materials

DAC body material
Beryllium copper – CuBe2, Brass
Material of screws and other parts
beryllium copper – CuBe2, Brass -, non-magnetic stainless steel
Material seats and rocker
Beryllium copper -CuBe2, Zirconium ZrO2

Drive and clamping

Membrane
soldered

Other features — Holes can be drilled for access next to the sample to:

  • setup Thermocouples
  • setup Electrical connectors (electrical measurements)

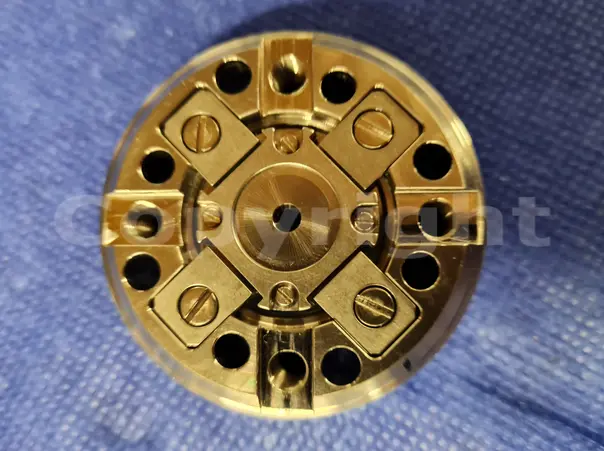

M-DAC-LOW-AMA membrane diamond anvil cell – view 2 – BETSA®

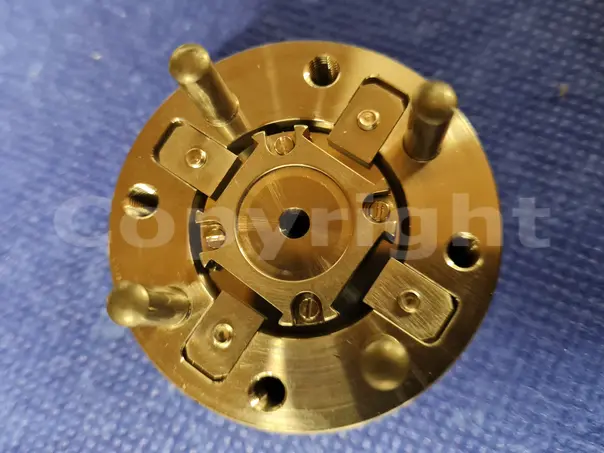

M-DAC-LOW-AMA membrane diamond anvil cell – view 3 – BETSA®

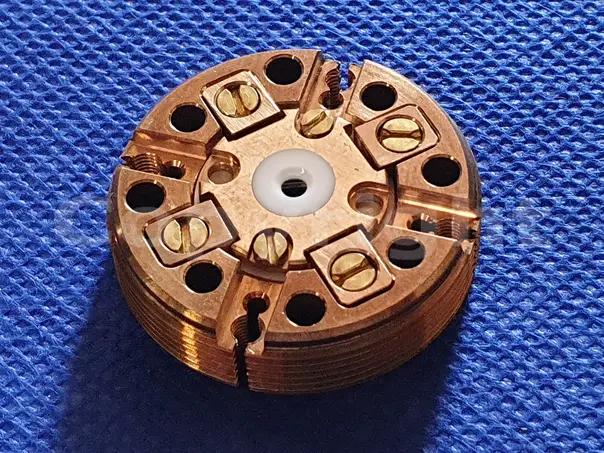

M-DAC-LOW-AMA membrane diamond anvil cell – view 4 – BETSA®

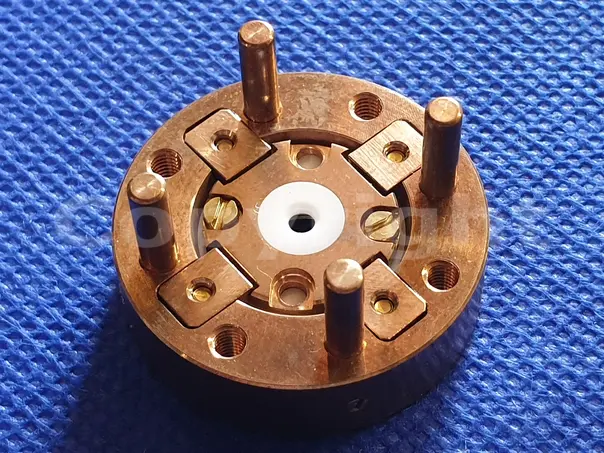

M-DAC-LOW-AMA membrane diamond anvil cell – view 5 – BETSA®

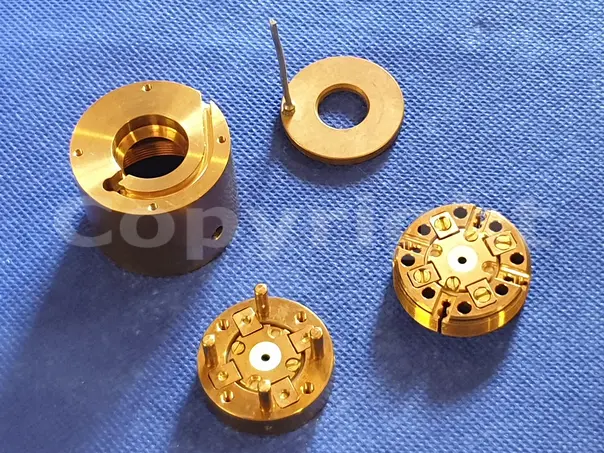

M-DAC-LOW-AMA membrane diamond anvil cell – view 6 – BETSA®

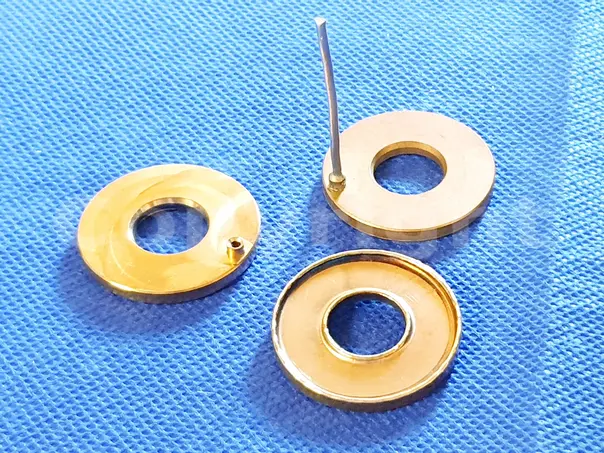

M-DAC-LOW-AMA membrane diamond anvil cell – view 7 – BETSA®

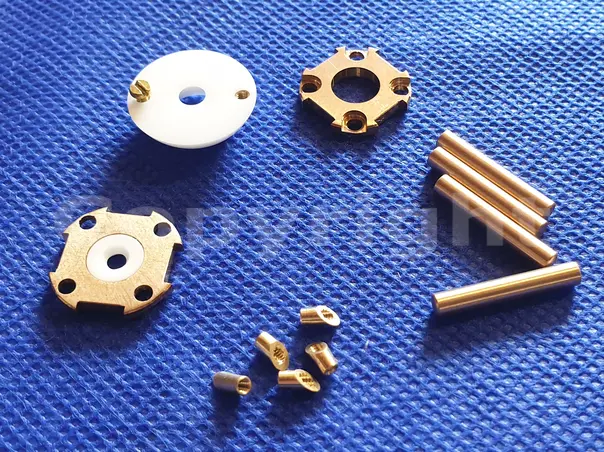

M-DAC-LOW-AMA membrane diamond anvil cell – view 8 – BETSA®
