When laser heating up to 4000 K, focused on the sample, thermal effects due to laser-matter interaction in metals can cause undesirable effects: the M-DAC starts to heat up, and so do the rockers and the seats. The external cooler takes that heat away.

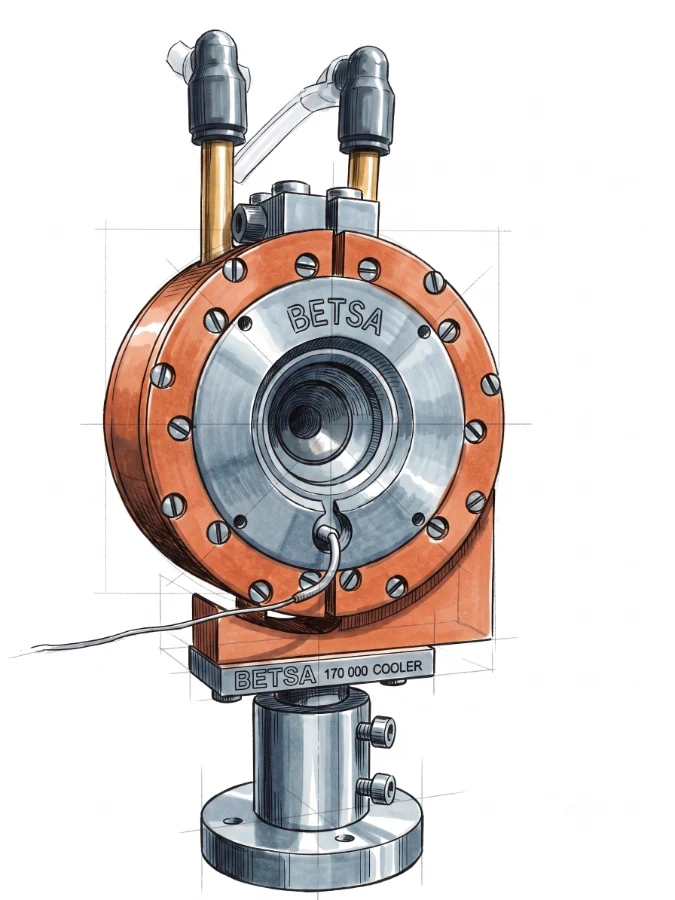

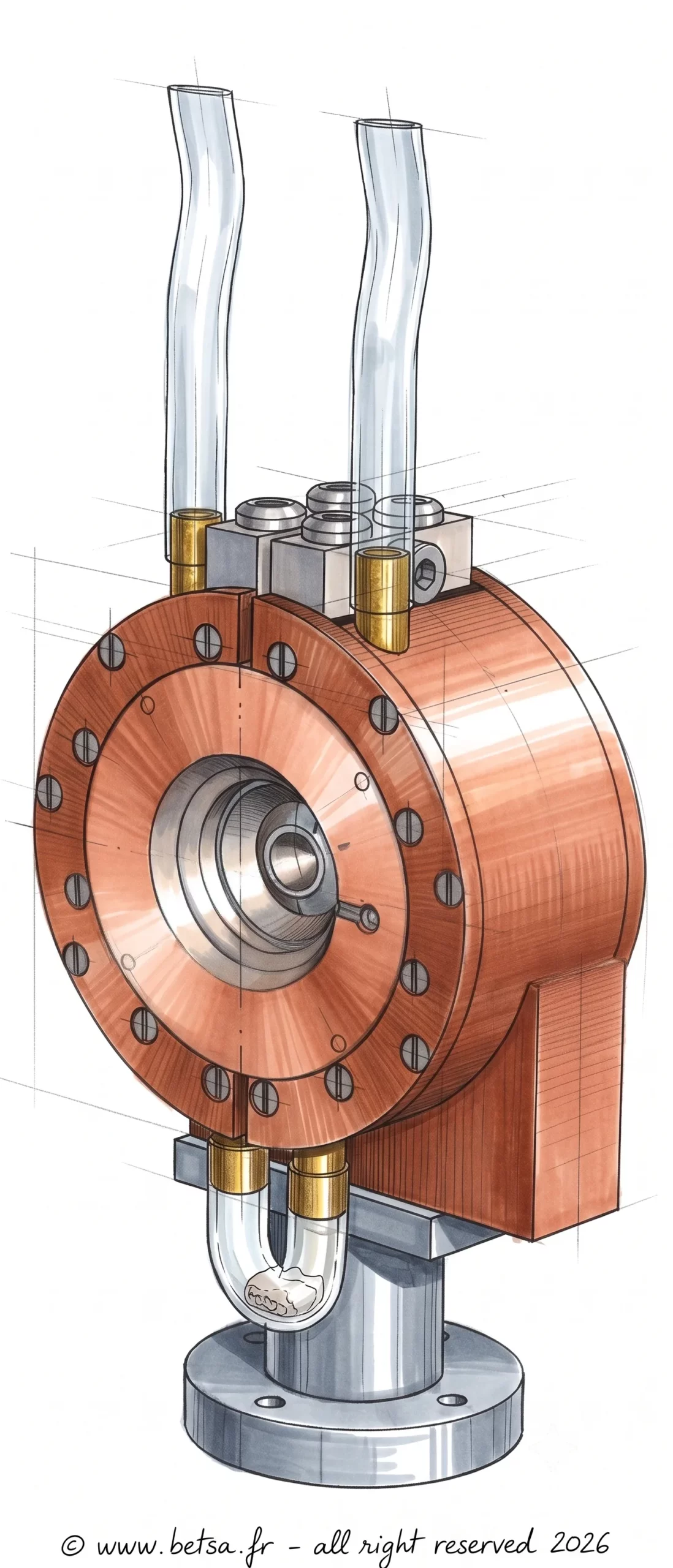

The cooler is optimized for the BETSA® M-DAC in laser heating but can be manufactured for any other type of DAC. Recirculating refrigerated designs are available in a range of cooling capacities, with different temperature ranges and tank volumes on request.

• Closing by tightening screw on the external diameter.
• Mount fixed with Z adjustment of ±5 mm; table mounting on the BETSA® [XYZ3] is possible.
• Output horizontal or vertical, flexible tube and quick coupling.
