M-DAC-XF-LOW-CS

Membrane Diamond Anvil Cell

M-DAC-XF-LOW-CS

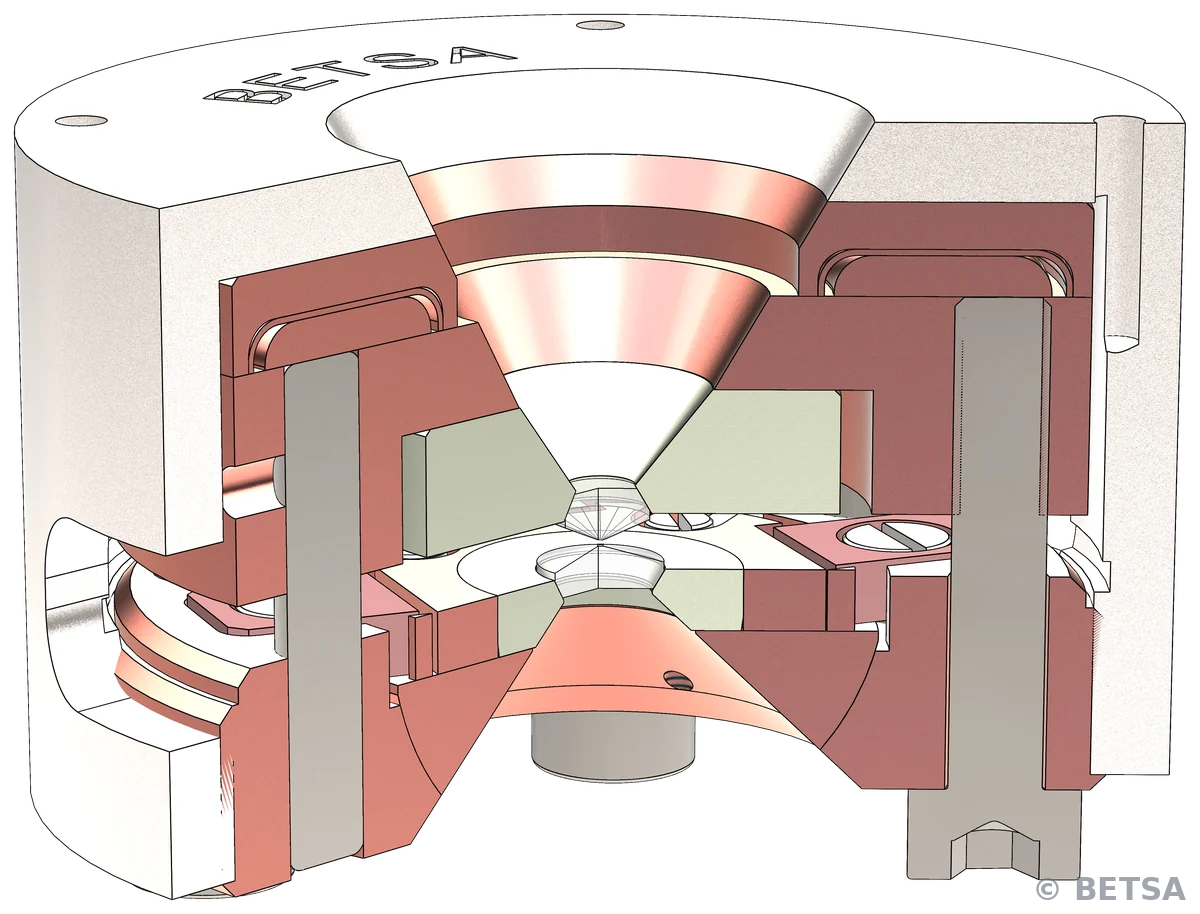

M-DAC-XF-LOW-CS membrane diamond anvil cell – BETSA®

Technical data

  • Low temperature.
  • 40 GPa
  • 4K to 450K
  • Full angle apertures 92°/63°
  • Height: 21 mm
  • Diameter: Ø 36 mm
  • 2x Standard anvils
  • 1x Cover
  • 1x Piston
  • 1x Cylinder
  • 4x Dowels
  • 1x Rockers
  • 2x Seats
  • 4x adjustment screws
  • Beryllium copper – CuBe2
  • Titanium
  • hardened steel
  • steel
  • stainless steel
  • tungsten carbide – WC
  • Membrane soldered
  • Membrane and/or combined with screw
  • Clamping by manual screw (2 left/2 right)
  • Other features: Holes can be drilled for access next to the sample to:
  • -setup Thermocouples
  • -setup Electrical connectors (electrical measurements)
M-DAC-XF-LOW-CS membrane diamond anvil cell – view 2 – BETSA®

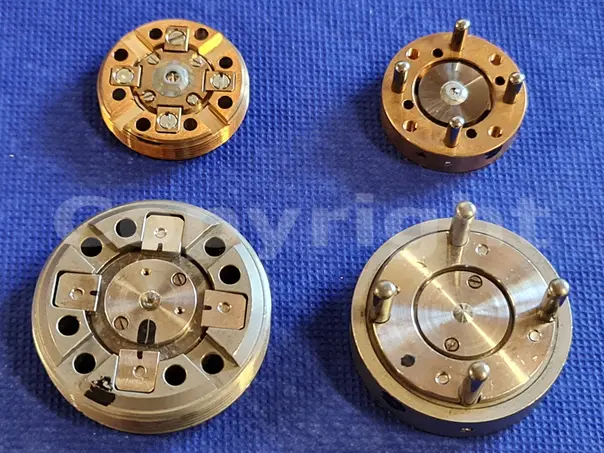

M-DAC-XF-LOW-CS membrane diamond anvil cell – view 3 – BETSA®

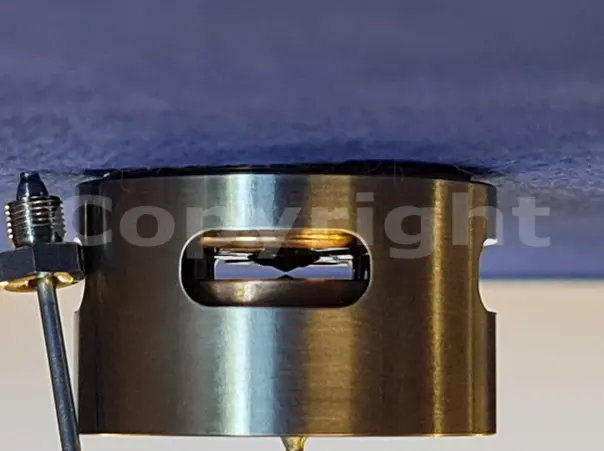

M-DAC-XF-LOW-CS membrane diamond anvil cell – view 4 – BETSA®

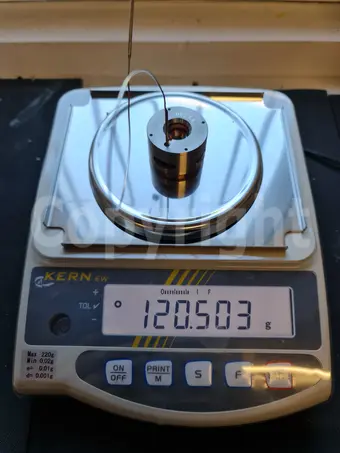

M-DAC-XF-LOW-CS membrane diamond anvil cell – view 5 – BETSA®

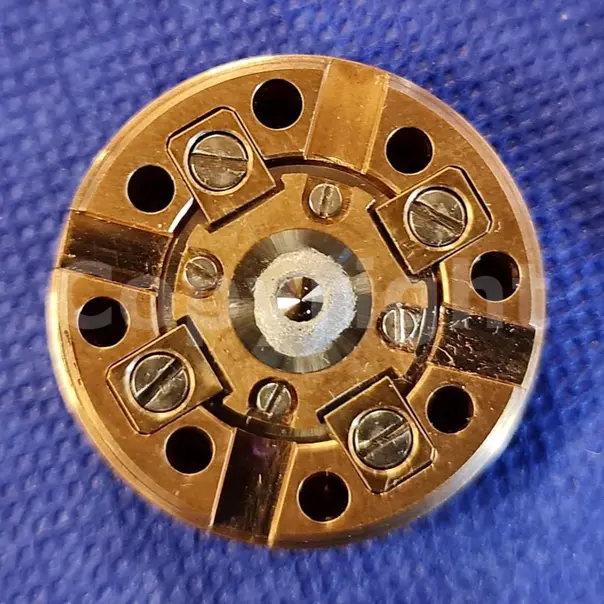

M-DAC-XF-LOW-CS membrane diamond anvil cell – view 6 – BETSA®

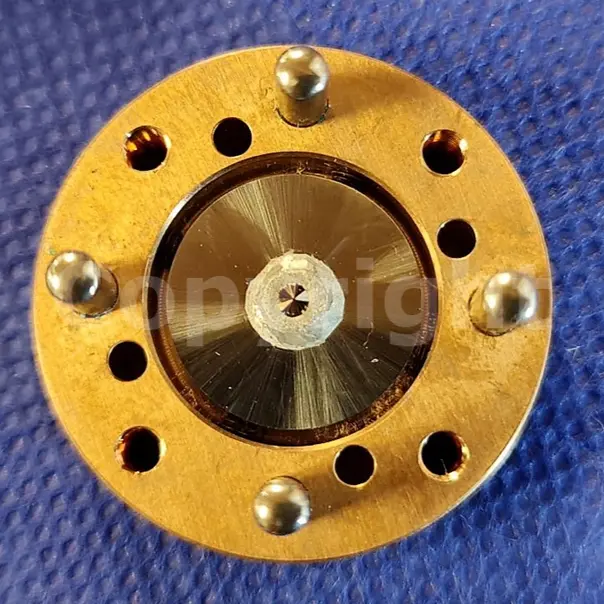

M-DAC-XF-LOW-CS membrane diamond anvil cell – view 7 – BETSA®
