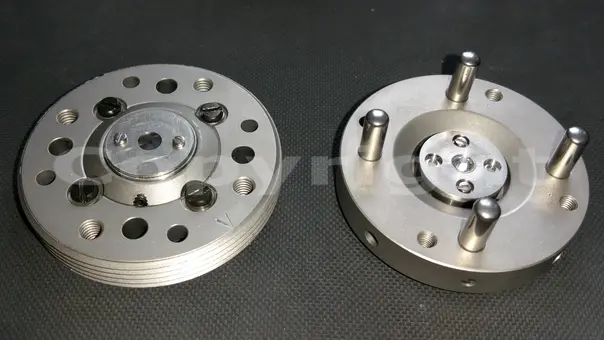

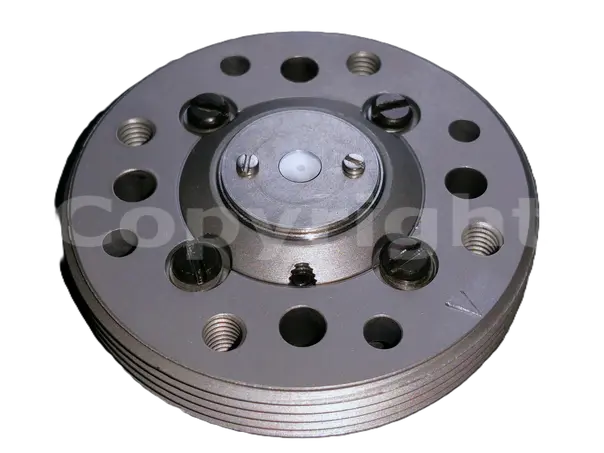

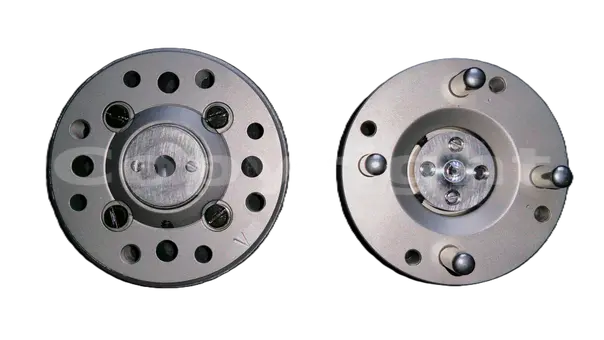

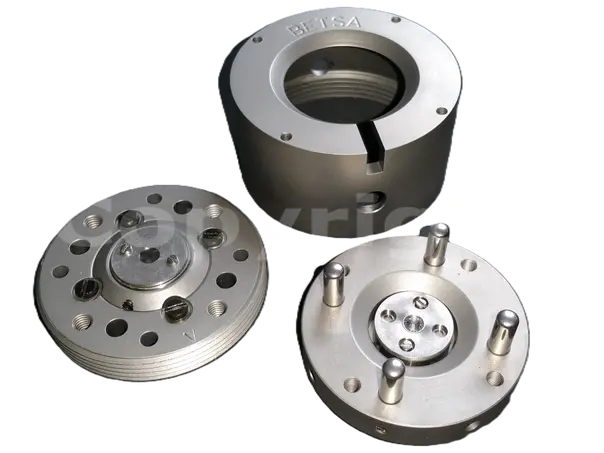

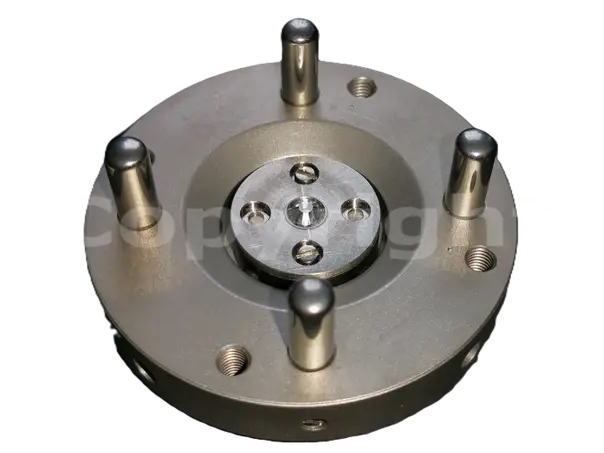

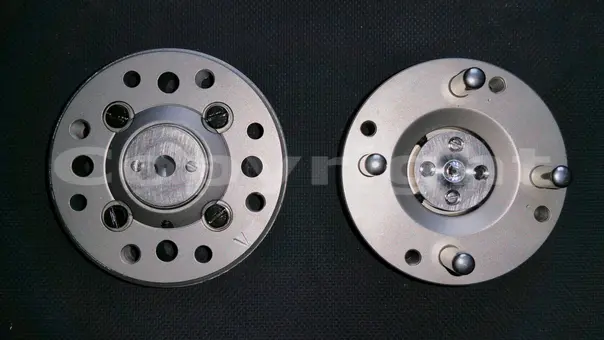

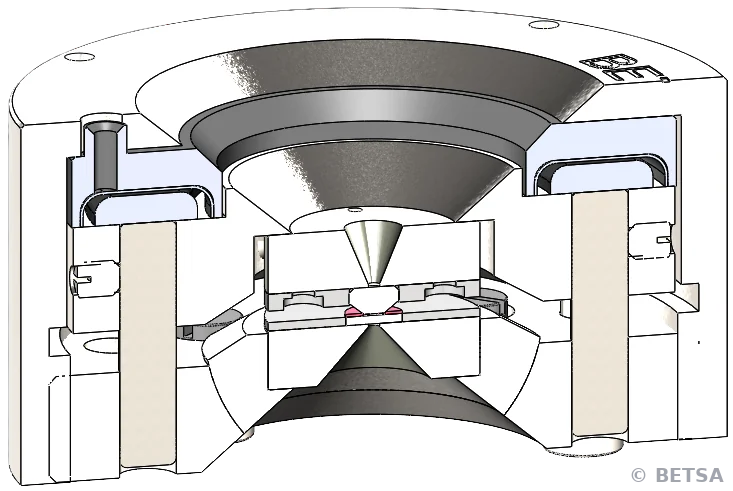

Membrane Diamond Anvil Cell
M-DAC-XW-CS
Technical data
Performance
Maximum pressure
10 GPa
Temperature range
large range temperature · 4K to 450K
Optical access
Full angle apertures
40°/84°
Working distance
≥ 13 mm
Dimensions
Height
25.5 mm (0.98″)
Diameter
Ø 50 mm (1.97″)
Composition
Standard anvils
1
Diamond window – 600µm
1
Cover
1
Piston
1
Cylinder
1
Dowels
4
Rockers
1
Seats
2
Internal adjustment – adjustment screws
4
Materials
Materials
Inconel High temperature, hardened steel, steel, stainless steel, tungsten carbide – WC
Drive and clamping
Membrane
soldered · with screw · lateral soldered · and/or combined with screw
Manual
Clamping by manual screw (2 left/2 right) · Manual screw (4 right and/or gearbox screw
Other features — Holes can be drilled for access next to the sample to:
- setup Thermocouples
- setup Electrical connectors (electrical measurements)
