M-DAC Types
Membrane – Diamond Anvil Cell — a modular BETSA® range, from low to ultra-high pressure.
A modular high-pressure cell
The BETSA® Membrane – Diamond Anvil Cell (M-DAC) is a modular high-pressure cell, available in a wide range of configurations to match your experiment — from low, room and high temperature to a large temperature range, and from low to ultra-high pressure.
It is suited to a broad range of techniques: visible spectroscopy, single-crystal and powder X-ray diffraction, Raman and infrared, radial diffraction, Brillouin and X-ray spectroscopy, laser heating and amagnetic experiments.
Specifications
| Pressure range* | up to 300–400 GPa |
|---|---|
| Temperature range | 4 K to 450 K · RT to 450 K · > RT up to 1000 K · 4 K to 1000 K |
| Optical access to the sample | full-angle apertures 76° / 76° · working distance ≥ 13 mm |
| Size | height 32 mm (1.26″) · diameter Ø 50 mm (1.97″) |
*depending on the culet size of the diamonds.
Composition & materials

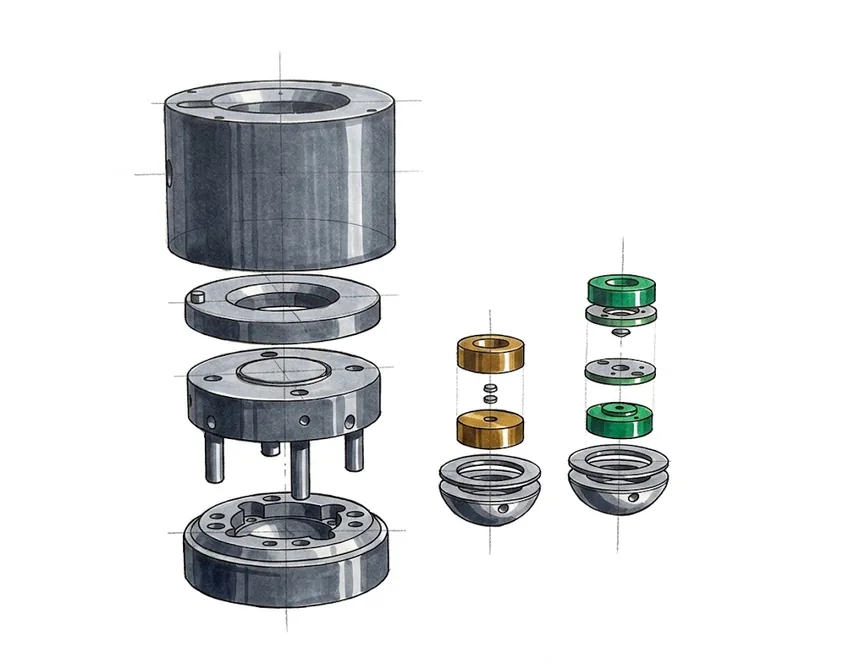

Composed of: standard anvils, conical anvils, diamond window, cover, piston, cylinder, dowels, rockers, seats, external adjustment (bridles) and internal adjustment (adjustment screws).
DAC body material: Inconel, Inconel high-temperature, beryllium copper (CuBe2).
Screws and other parts: hardened steel, steel, brass, beryllium copper (CuBe2), Inconel high-temperature, stainless steel.
Seats and rocker: Inconel, Inconel high-temperature, beryllium copper (CuBe2), tungsten carbide (WC), titanium diboride (TiB2, 1200 °C continuous), zirconia (ZrO2).
Membranes & clamping
Designed to receive BETSA® membranes: soldered, soldered HT, with screw, lateral soldered, and cover.
Clamp screw (optional): membrane and/or combined with screw; clamping by manual screw (2 left / 2 right); manual screw (4 right) and/or gearbox screw.
Other features: holes can be drilled for access next to the sample to set up thermocouples or electrical connectors for electrical measurements.
