High-temperature vacuum chamber

Vacuum Chamber [EAV001]

Designed for heated diamond anvil cells

Whether you work with BETSA® cells or another brand, our adapters let you install any diamond anvil cell for high-temperature research, with internal or external heating.

A vacuum chamber protects your diamonds and improves your results: the higher the temperature, the stricter the vacuum has to be to preserve your hardware and guarantee the quality of the experiment.

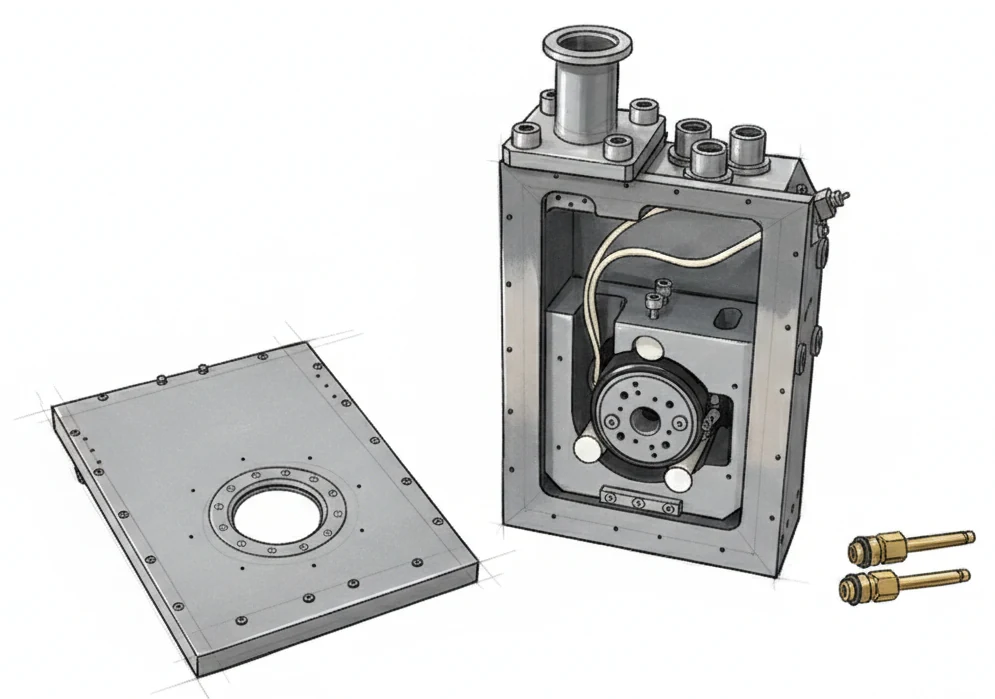

Overview and compatibility

Engineered to host diamond anvil cells, optimized for BETSA® M-DAC and EHS X-ray setups. Stainless steel 304 body, sandblasted finish, symmetrical 31.5 mm working distance with the 7 mm flange, optical openings of 67° and 73°.

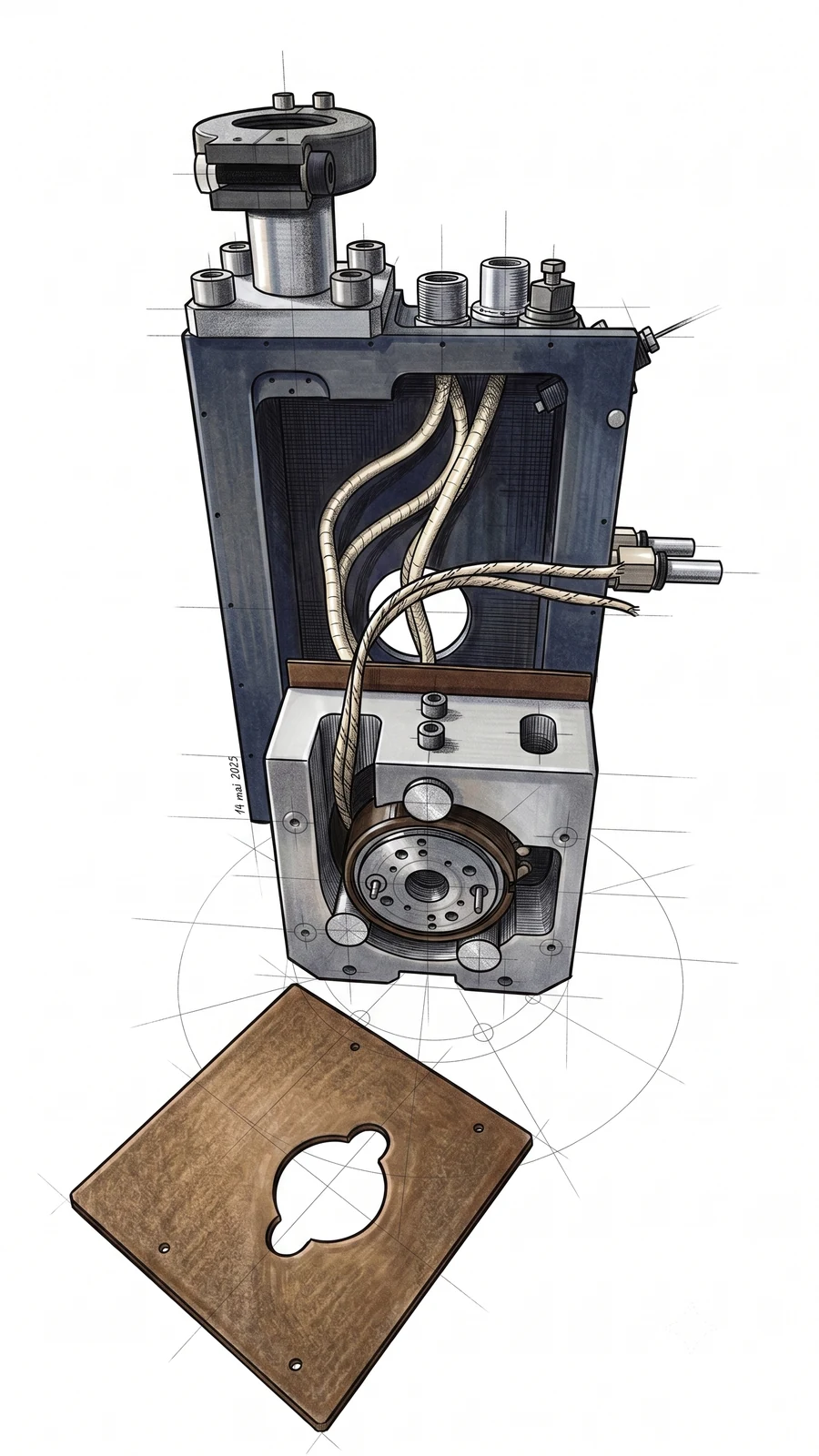

Thermal and vacuum performance

From 20 °C to 1350 °C, compatible with our internal (IHS) and external (EHS) heating systems. O-ring seals, JIS-VG Ø25 mm pumping flange, feedthroughs for helium, Noxal and 1/16" capillaries.

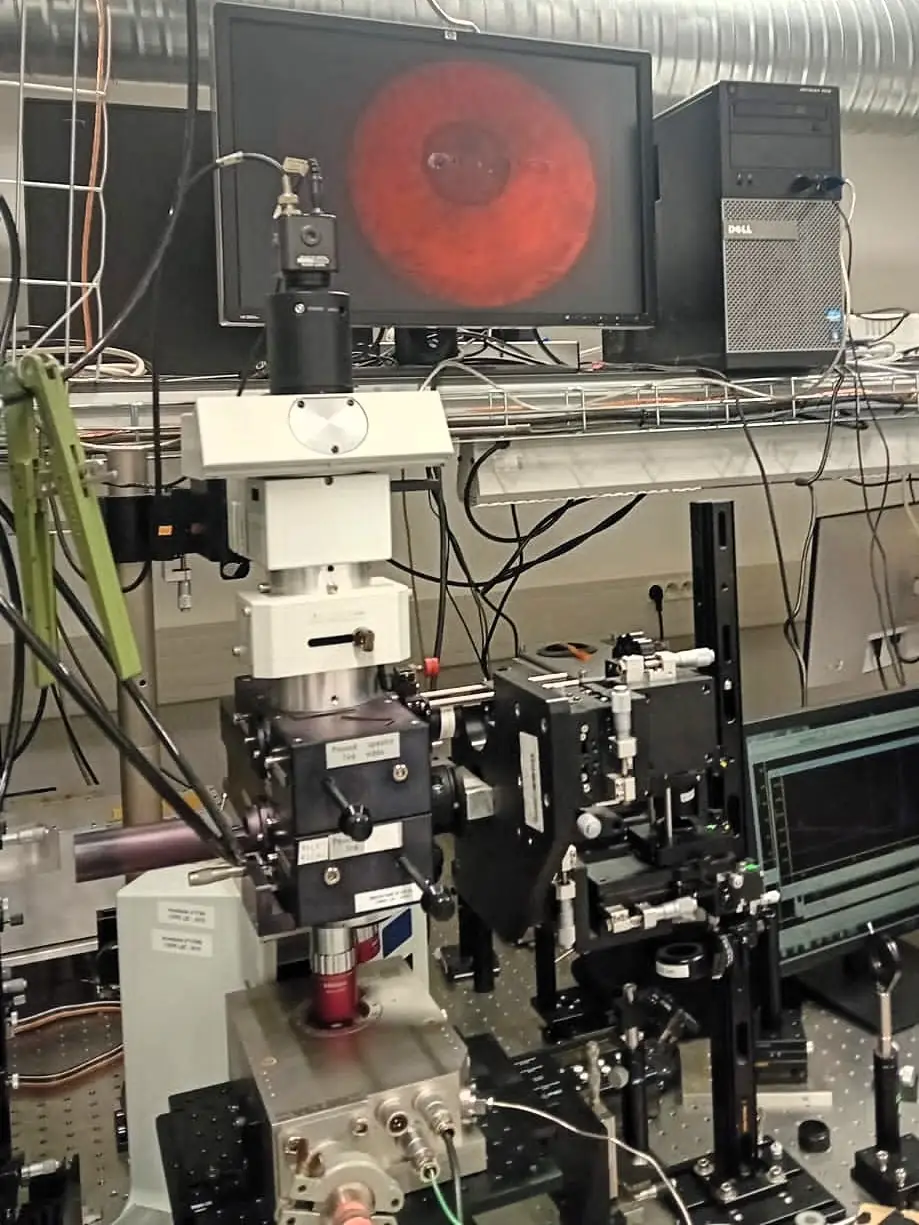

Flat installation of the BETSA® EAV001 vacuum chamber assembly on an optical bench
Flat installation of the assembly.

Connectivity and customization

Fischer connectors with 6 power lines up to 28 A and 6 measurement lines. Windows in BK7 or BaF2, extra viewports, access flanges of 7 or 11 mm, removable furnace support.

Technical data

Thermal

Temperature range
20 °C to 1350 °C
Heating
Compatible with BETSA® internal (IHS) and external (EHS) heating systems, and with third-party systems
Cooling
Water circulation compatible
Monitoring
Type K thermocouple

Optical access

Optical openings
67° and 73° for X-ray with EHS
Working distance
31.5 mm, symmetrical, for BETSA® M-DAC and EHS
Windows
BK7 and/or BaF2, 2 mm thick
Coating
Anti-reflective on request

Chamber body

Material
Stainless steel type 304
Finish
Sandblasted external finish
Seals
O-ring profiles on windows, gas inlets, electrical connectors and flanges

Dimensions

With 7 mm flange
140 × 63 × 200 mm
With 13 mm flange
140 × 69 × 200 mm

Vacuum and gas

Pump interface
1 × JIS-VG Ø 25 mm flange
Gas feedthroughs
Helium, Noxal and 1/16” capillaries
Fittings
BETSA® olive screw fittings

Electrical

Feedthroughs
Fischer connectors, 3 inputs
Power
6 lines, 28 A max, parallel connection possible
Measurement
6 lines

Options — additional BaF2 or BK7 viewports, custom access flanges of 7 or 11 mm, removable furnace supports adapted to your cell.
